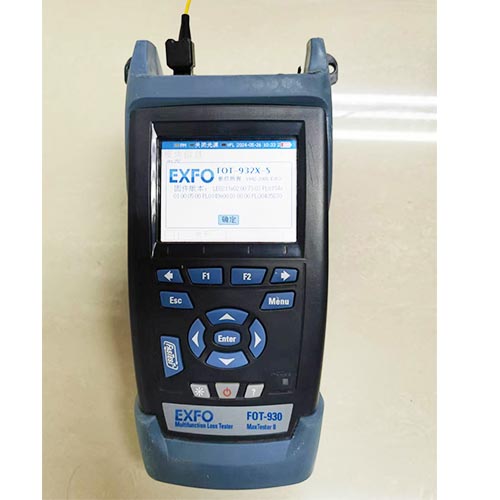

EXFO FOT-930 MaxTester II

●FasTesTTM: three-wavelength measurement of optical loss, ORL and fiber length in 10 seconds

●All-in-one portable test solution: up to eight instruments combined in a single, eye-catching handheld package

●FTTx-ready: allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs

●Cost of ownership: lowest in the industry, thanks to three-year warranty and recommended calibration interval, error-free testing and minimized training time

EXFO’s Next-Generation MaxTester:

Much More Features, Much Bigger Performance

The new FOT-930 MaxTester Multifunction Loss Tester is designed to help network service providers address CAPEX and OPEX issues,

enable installers to easily adapt to all network types, and provide CATV operators with a single-unit solution to their backreflection,

fiber-length, high-power and bidirectional loss measurement needs. Combined with its video fiber inspection probe, this unit also

enables the easy detection of dirty or damaged connectors, providing a clear view of connectors and fiber ends on the FOT-930’s highresolution

display.

All-in-one unit: combines up to eight instruments

●Loss meter

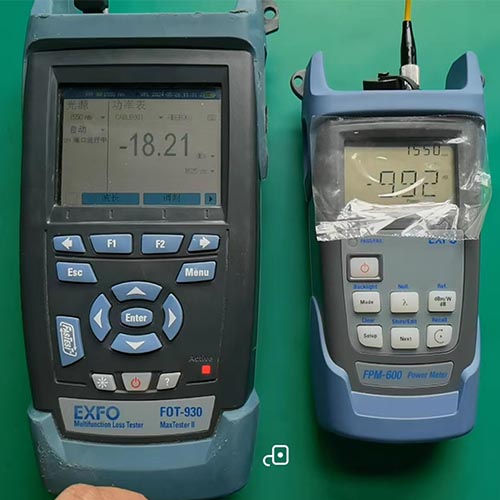

●Power meter

●Optical return loss (ORL) meter

●Visual fault locator

●Multimode and singlemode light sources

●Digital talk set

●Fiber-length meter

●Video fiber inspection probe

FasTesT function*: one-touch, automated measurements in 10 seconds

●Bidirectional loss and ORL testing at up to three singlemode wavelengths

●Bidirectional loss testing at two multimode wavelengths

●Fiber-length measurement

Flexible solution: five-wavelength multimode and singlemode

configurations meeting the requirements of installers/contractors

for all test situations

●Up to three singlemode wavelengths—1310 nm, 1550 nm

and a choice between 1490 nm and 1625 nm—on one port

●Two multimode wavelengths—850 nm and 1300 nm—on a second port

Future-proof: next-generation features meeting the latest

industry requirements

●User-configurable pass/fail thresholds that can be adjusted to different industry standards

●FTTx-ready, allowing for the testing of passive optical networks (PONs) at 1310, 1490 and 1550 nm, the three ITU-T G.983.3 recommended wavelengths for PONs

Cost of ownership: lowest on the market

●Three-year warranty and recommended calibration interval

●Error-free testing achieved through visual loss and ORL pass/fail analysis

●Minimized training time, thanks to a single user interface for the eight instruments included in this all-in-one unit

Easy to use and ergonomic: built for today’s fiber-optic test

requirements

●Handy, eye-catching and rugged handheld package

●High-resolution color display

●Complete data management and report generation

●Nine hours power autonomy provided by field-swappable rechargeable batteries
