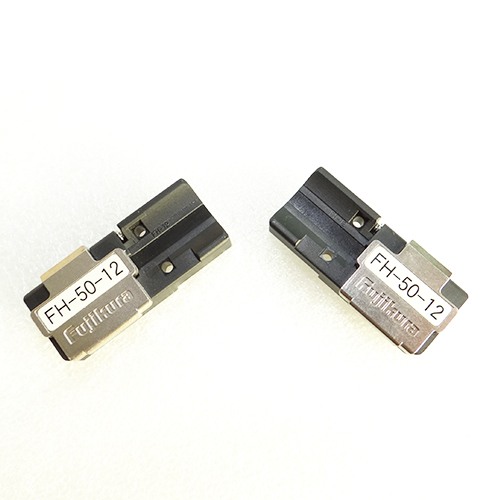

Fiber Holder FH-50 series
The Fiber Holder,FH-50 series is exclusively used for Fujikura FSM-60R,FSM-18R, SpliceMate, and former Fujikura ribbon fiber Splicers.
Fujikura Fiber Holder System is developed to provide appropriate splicing work for several kinds of fibers, single fibers or fiber ribbons.
The FH-50 series is supplied with a pair, for the left and the right respectively.
|
SPECIFICATION
|
|
Applicable number of fiber
|
Single to 12 fibers
|
|
Type variation
|
In accordance with number of fiber
Please see VARIATION table below
|
|
Fiber holding
|
Magnetic clamping
|
|
Fiber Holder placing onto splicer
|
Guide-pin system with two pins per one side of Fiber Holder
|
|
Dimensions
|
39L x 16W x 7H [mm]
|
|
Weight
|
20g for 1pair
|
|
Dimensions/Weight
|
125W x 48D x 41H [mm], 260g * weight including battery
|
|
Material
|
Base plate: Heat-hardening plastic / Lid:Iron-Nickel alloy
|
|
Use for
|
Fusion Splicer
|
Ribbon
|
70R+,FSM-60R,FSM-50R,19R,FSM-18R,FSM-17R,FSM-11R
|
|
Single
|
80S,80C,70S,61S,62C,62S,41S,38S,31S,27S+,22S,21S,19S,
FSM-18S,FSM-17S-FH,12S,FSM-11S
|
|
Fiber Cleaver
|
CT-05,CT-06,CT08,CT16,CT-20,CT-22,CT-30,CT-32,CT-38,
CT50,CT52,CT58,CT-102
|
|
Jacket Stripper
|
HJS-02, HJS-03 (except FH-50-250and FH-50-900)
|
VARIATION
|
Ribbon fiber fusion splicer
|
|
Model
|
FH-50-2
|
FH-50-4
|
FH-50-5
|
FH-50-6
|
FH-50-8
|
FH-50-10
|
FH-50-12
|
FH-50-250
|
FH-50-900
|
|
Fiber
|
2-fiber ribbon
|
4-fiber ribbon
|
5-fiber ribbon
|
6-fiber ribbon
|
8-fiber ribbon
|
10-fiber ribbon
|
12-fiber ribbon
|
Single (250μm)
|
Single (900μm)
|
|
Single Fiber fusion splicer
|
|
|
Model
|
FH-50-250
|
FH-50-900
|
Note) The FH-50 series can be used for Fujikura's
|
|
Fiber
|
Single (250μm)
|
Single (900μm)
|
previous models of splicers or fiber cleavers.
|
