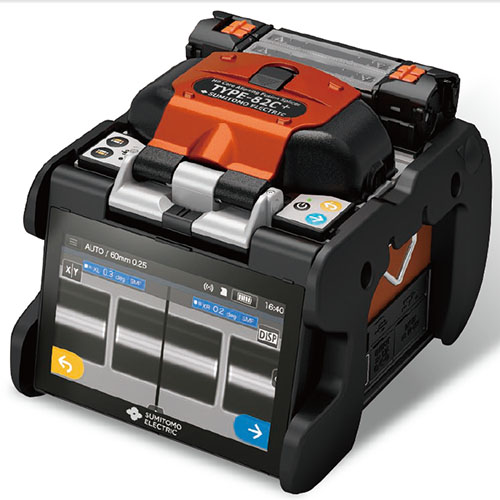

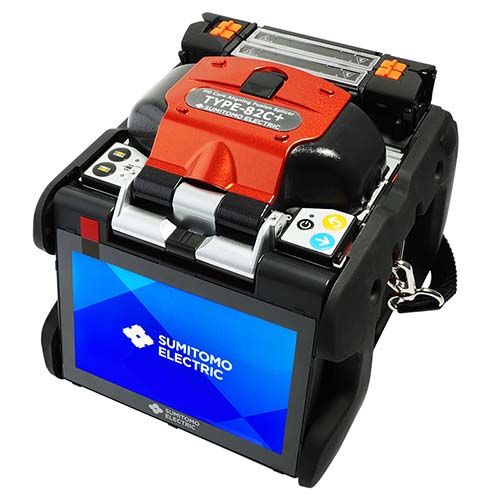

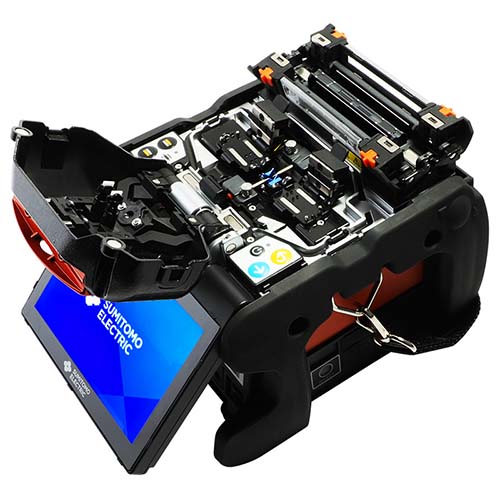

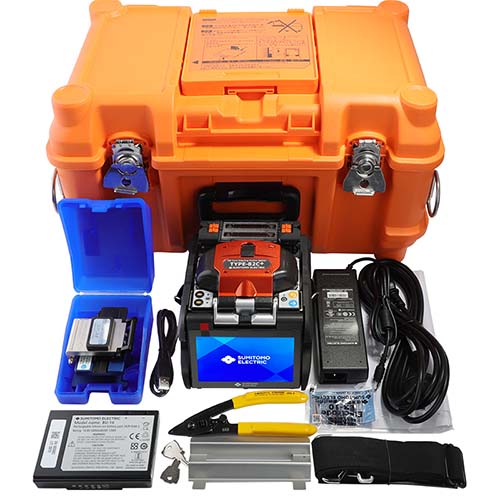

Sumitomo Type-82C+ Aligning Fusion Splicer

Manufacturer:

Sumitomo

Model:

Type-82C+

Condition:

Brand New

Availability:

2 Units

Price:

$5,200.00

Qty:

Description:

Feature

The TYPE-82C+’s advanced electronic design, which accommodates the built-in dual heating system and simultaneous operation, makes the faster fusion splicer available on the market by reducing the bottle neck of “heater wait time”. With an individual heater cycle time of only Approx.29 seconds (60mm Fiber protection sleeves) and a splice cycle of only Approx.5 seconds (Quick mode), the TYPE-82C+ improves splicing efficiency and productivity dramatically, thereby reducing labor time and costs while increasing project and customer service turn-up.

The TYPE-82C+’s 5 inch LCD monitor with touch screen operation enables to confirm fiber images easily. The splicer can be operated by touching the icons on the screen. The working efficiency has improved.

The TYPE-82C+ has environmental protection equivalent to IP52 waterproof and dust proof. Also has anti-shock rubbers around the machine to protect the splicer from dropping.

Designed for portability, precision splicing, reliability, and speed — without foregoing affordabilityâ€• the TYPE-82C+ splicer is ideal for splicing applications in the central office or head end, the feeder portion of the FTTx network where speed in high fiber application is crucial, and at terminals leading to the final drop to premises or home. For added convenience and functionality, the TYPE-82C+ design includes a multi- position monitor that automatically change its view to accommodate front-to-back and back-to-front viewing for a vast array of splicing applications. The splicer is RoHS compliant.

Additionally, the splicer’s High–resolution Direct Core Monitoring (HDCM) image processing software, is used to perform core alignment and estimates splice loss for creating low-loss optical fiber splices with typical splice loss of less than 0.01dB for single-mode fiber and less than 0.01dB for multimode, enables to splice most BIF fibers in the market. Like other Sumitomo splicers, the TYPE-82C+ is manufactured with durable metal rather than plastic materials predominantly used in the industry.

Highlights

· Compact & Lightweight with only 2.2 kg weight including battery

· Ultra fast splicing (5 sec.)

· Ultra fast heating (9 sec.)

· Dust-free, water resistant and shock-proof.

· Touch-screen operation

· Remote support via internet

o Upgrades software via internet

o Remote interactive maintenance via internet

Details

TECHNICAL SPECIFICATIONS

OPTICAL FIBER REQUIREMENTS
Material	Silica glass
Profile types	SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF
Fiber diameter	Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm
Applicable fiber or cable size	up to φ1,000 µm	Drop cable (2.0x3.1 mm), Indoor cable (2.0x2.0 mm)
Cleave length	5~16 mm	10 mm
STANDARD PERFORMANCE
Splice loss (typical)	SMF: 0.01 dB, MMF: 0.01 dB, DSF: 0.034 dB, NZDSF: 0.03 dB
Splicing cycle time (typical)	5 sec. (Quick mode), 7 sec. (SMF standard mode), 7 sec. (Auto mode)
Heating cycle time (typical)	9 sec.
Splice & Heat cycles	Approx. 300
Fiber view & magnification	Two CMOS cameras observation, 380X (zoom: 760X) for X or Y single axis view, 270X for both X & Y dual axis view
Splicing programs	Max. 300
Heating programs	Max. 100
FUNCTIONS
Loss estimation	Provided
Splice image capture / Splice data storage	200 images / 10,000 splice data
Proof test	1.96N (200 gf)
Universal clamps for 250µm, 900µm tight & loose buffer fiber	Provided
Reversible coating clamps	Provided
Dual automatic independent heaters	Provided (US patent 7,412,146)
User-selectable heater clamp operation	Provided
Onboard user training video	Provided
Automatic arc calibration	Automatically compensates for environmental condition changes
Arc test	Provided
Display of remaining Splice & Heat cycles	Provided (Battery mode)
Remote interactive maintenance	Provided
TERMINALS
DC output	DC12 V (for JR-6)
USB port	USB 2.0 (mini-B type)
Storage media	SD / SDHC memory card
POWER SUPPLY
AC input	100 ～ 240V, 50 / 60 Hz (ADC-1430)
DC input	10 ～15 V
Battery module	Li-ion 10.8 V, 6,400 mAh (BU-16)
MECHANICAL PARAMETERS
Monitor	5.0" touch screen color LCD display
Size	128(W) x 154(D) x 130(H) mm (without anti-shock rubber)
Weight	1.9 kg (without battery), 2.2 kg (with battery)
Electrode life	3,000 arc discharges
ENVIRONMENT
Operating conditions	Altitude 0～6,000 m, Temperature -10～+50°C, Humidity 0～95% (non-condensing), Wind velocity up to 15 m/s
Storage conditions	Temperature -40～+80°C, Humidity 0～95% (non-condensing), Battery -20～+30°C (long term)
Dust resistance	Equivalent to IP5x (Operates normally after 8 hours in a dust chamber (containing dust of particle size 25 µm or below
Water resistance	Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15°)
Shock resistance	Drop from 76cm on 5 faces (excluding top face)
