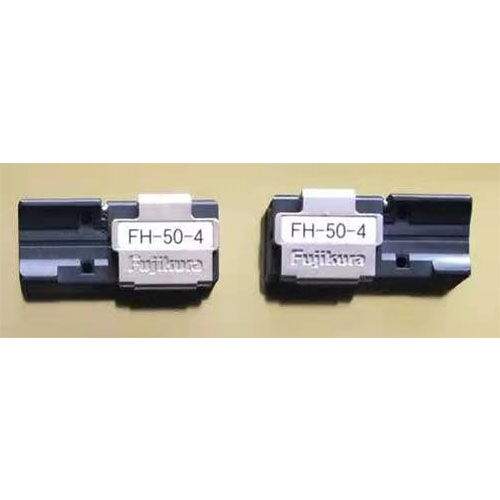

Fiber Holder FH-50 series
The Fiber Holder,FH-50 series is exclusively used for Fujikura FSM-60R,FSM-18R, SpliceMate, and former Fujikura ribbon fiber Splicers.
Fujikura Fiber Holder System is developed to provide appropriate splicing work for several kinds of fibers, single fibers or fiber ribbons.
The FH-50 series is supplied with a pair, for the left and the right respectively.

SPECIFICATION
Applicable number of fiber			Single to 12 fibers
Type variation			In accordance with number of fiber Please see VARIATION table below
Fiber holding			Magnetic clamping
Fiber Holder placing onto splicer			Guide-pin system with two pins per one side of Fiber Holder
Dimensions			39L x 16W x 7H [mm]
Weight			20g for 1pair
Dimensions/Weight			125W x 48D x 41H [mm], 260g * weight including battery
Material			Base plate: Heat-hardening plastic / Lid:Iron-Nickel alloy
Use for	Fusion Splicer	Ribbon	70R+,FSM-60R,FSM-50R,19R,FSM-18R,FSM-17R,FSM-11R
		Single	80S,80C,70S,61S,62C,62S,41S,38S,31S,27S+,22S,21S,19S, FSM-18S,FSM-17S-FH,12S,FSM-11S
	Fiber Cleaver		CT-05,CT-06,CT08,CT16,CT-20,CT-22,CT-30,CT-32,CT-38, CT50,CT52,CT58,CT-102
	Jacket Stripper		HJS-02, HJS-03 (except FH-50-250and FH-50-900)

VARIATION

Ribbon fiber fusion splicer
Model	FH-50-2	FH-50-4	FH-50-5	FH-50-6	FH-50-8	FH-50-10	FH-50-12	FH-50-250	FH-50-900
Fiber	2-fiber ribbon	4-fiber ribbon	5-fiber ribbon	6-fiber ribbon	8-fiber ribbon	10-fiber ribbon	12-fiber ribbon	Single (250μm)	Single (900μm)
Single Fiber fusion splicer
Model	FH-50-250		FH-50-900		Note) The FH-50 series can be used for Fujikura's
Fiber	Single (250μm)		Single (900μm)		previous models of splicers or fiber cleavers.
