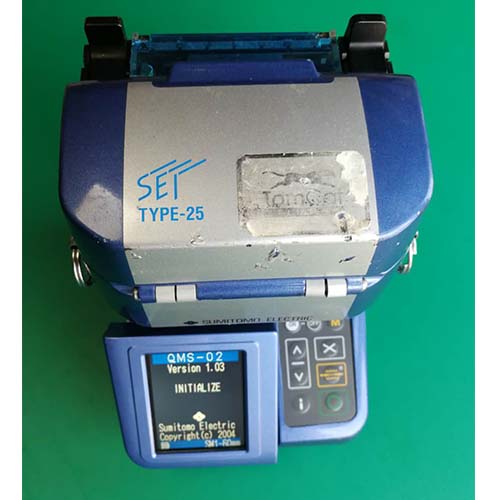

--Sumitomo--Sumitomo QMS-02 Fusion Splicer (Single Camera)

Sumitomo QMS-02 Fusion Splicer (Single Camera)

Manufacturer:

Sumitomo

Model:

QMS-02

Condition:

Used

Availability:

3 pcs

Price:

$1,250.00

Qty:

Description:

Including: QMS-02 main body, battery, AC adapter, S324 cleaver, FO103 stripper, electrodes.

Feature

Description:

Sumitomo’s TomCat splicers are the industry’s first “full-featured” hand-held fiber splicers offering both the agility and the robustness required for FTTx, premise, and optical component assembly applications. Easy-to-use, easy-to-learn, these portable battery-operated splicers reduce training time for efficient deployments—making fusion splicing the choice for both optimum reliability and affordability.

Included in the “full-featured” distinction of the TomCat splicers are adjustable position monitors that allow the user to observe the fiber during the splicing process. Their front-to-back workflow makes the splicers ideal when limited fiber slack is available, in aerial taut-sheath applications, and for component testing. Sumitomo’s fiber holder system facilitates quick and easy fiber preparation and placement.

The splicers’ small footprints maximize workspace and enable precision splicing at a close proximity to the splice point for optimal flexibility. All TomCat units are optimized for both single-mode and multimode fibers and are manufactured with the same Sumitomo commitment to quality and reliability.

Features:

Single Camera Splice Loss Estimation
Compact, Lightweight (3.3lb) Design Simplifies Splicing in Confined Areas.
30 Splices on a Single Battery
Automatic Arc Test Function
Mounting Holes for Securing the Splicer to a Workstation for Aerial, Pole, & Pedestal Applications
Fiber Holders Allow for Quick and Easy Fiber Placement
Automatic Splice in Less than 13 Seconds for SMF or MMF

Specifications:

Alignment Method	Fixed V-Groove
Fiber Requirement	Silica Glass
Fiber Type	SMF and MMF
Coating Diameter	250 & 900µm
Typical Splice Time	<13 Seconds
Heater Time	<40 Seconds
Cleave Length	10mm
Battery Operation	30 splices (fully charged)
Number of Fiber Programs	15
Arc Power Compensation	Automatic Arc Test
Altitude	0-3660m(12,000feet)
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40 to 70°C (-40 to 58°F)

Details
