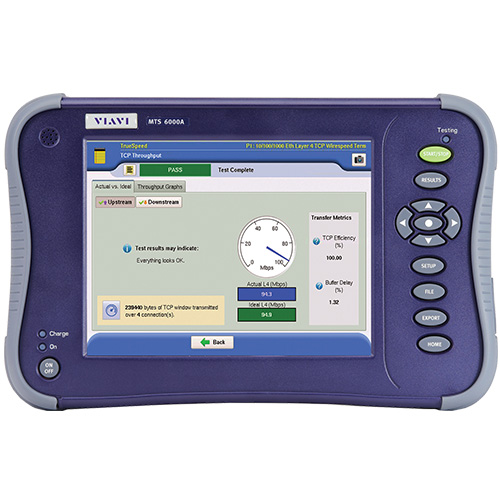

VIAVI T-BERD/MTS-6000A Compact Network Test Platform
Multilayer Solution for Network Installation and Maintenance
The highly integrated, modular VIAVI Solutions T-BERD®/MTS-6000A (V2) test platform can be used during all fiber network life-cycle phases. It offers field service technicians the greatest performance and versatile field upgradeability available today. The platform can be equipped with various options, such as a SATA hard disk, WiFi, Bluetooth, 4G/5G, and VFL/power meter/talk set, or other useful capabilities.
The flexibility of interchangeable module carriers and various plug-in modules let users create a platform that meets today’s specific testing needs and yet it can evolve seamlessly to meet tomorrow’s ever-changing network requirements.
Key Benefits
● Scalable multitest platform evolves with your network and associated test requirements (physical to service layer)
● Optimized for workflow and cloud integration (Ethernet, WiFi, Bluetooth, 4G/5G and beyond)
● Future-proofed, highly modular platform with field-upgradeable options and modules increases productivity
● StrataSync™ cloud-enabled software option increases field productivity
Key Features
● Compact, lightweight, modular, and highly integrated platform
● Multilayer network solution for testing the physical through services layers
● Field-upgradeable VFL, power meter, talk set, and video inspection scope options
● Over 40 physical single-mode or multimode fiber test application modules available
● Multiservice capability for Ethernet and SONET/SDH tests
● Upgrade testing capabilities with interchangeable module carriers, application modules, and platform options
● Open Linux Operating System
Applications
●Perform bidirectional OTDR and loss test set measurements
● Perform 10 G, 10 GE, and 40 G fiber dispersion testing (PMD/CD/AP)
● Optical spectrum analyzers for use installing and maintaining CWDM/DWDM networks
● Test 10 GE LAN- and WAN-PHY at 850, 1310, and 1550 nm
Scalable Equipment is Ideal for Field Testing
The test applications in the highly integrated, compact, modular T-BERD/MTS-6000A (V2) platform’s scalable, single-module carrier can expand easily to add new capabilities for current and future network testing needs. The platform’s 8-inch color touch screen display and intuitive graphical user interface (GUI) improves viewing in any conditions. Its high-capacity Lithium-ion (LiON) battery extends life when used with high-powered modules. Other features include a video inspection scope (via USB port) and field-upgradeable optical test functions, such as visual fault locator (VFL), power meter, and optical talk set.
Boost Productivity with Seamless Data Workflow
The T-BERD/MTS-6000A V2 can store media to its internal memory, SD card, USB dongle, or an optional 100 GB SATA hard disk. Users in secure environments can also store data/setups to a removable hard disk.
The platform also has field-upgradeable options for quick and easy remote control, as well as data/reports and setup upload/downloads using USB, Bluetooth, or via WiFi, Ethernet, or 4G/5G networks.
SmartAccessAnywhere offers technical support with remote access from anywhere.
A Module Carrier for Every Testing Need
The multidimensional design of the T-BERD/MTS-6000A (V2) provides optimal configuration flexibility with extended battery life. The fiber module carrier is best suited for fiber applications; whereas, the high-powered battery in the transport and fiber module carrier extends battery life when used with the carrier Ethernet (MSAM) or other intensive fiber applications.
Empower Your Assets with StrataSync
StrataSync is a hosted, cloud-based solution that lets providers manage assets, configurations, and test data for VIAVI instruments to ensure that all instruments have the latest software and options installed. StrataSync manages inventory, test results, and performance data anywhere with browser-based ease to improve technician and instrument efficiency. StrataSync manages and tracks test instruments, collects and analyzes results from the entire network, and informs and trains the workforce.
