--OTDR--Yokogawa AQ1000 OTDR, 1310/1550nm, 32/30dB

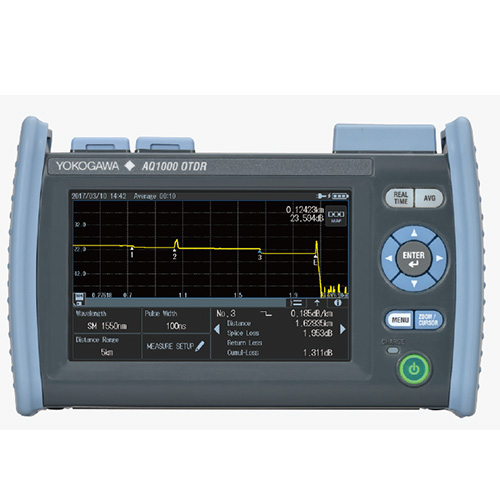

Yokogawa AQ1000 OTDR, 1310/1550nm, 32/30dB

Manufacturer:

Yokogawa

Model:

AQ1000

Condition:

New

Availability:

5 pcs

Price:

$2,200.00

Qty:

Description:

Feature

Empower field technicians to make fast and precise measurements

At-a-glance

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.

Wavelengths: 1310 / 1550 nm

Dynamic ranges: 32 / 30 dB

Size: 185 mm (W) × 116 mm (H) × 56 mm (D)

Weight: 660 g

Multi-touch touchscreen
Intuitive and responsive
Tap, swipe, pinch or press. the high resolution, responsive 5.0-inch multi-touch capacitive touchscreen and hard-key buttons make OTDR operations simple and intuitive.

One-button measurement
Full-Auto
Simply pressing one singe button, the AQ1000 initiates an OTDR measurement, detects and comprehensively characterizes network events with PASS/FAIL judgment based on user-defined thresholds. The measurement data can be saved automatically if desired.

Real-Time
Simple and fast way to observe how the network connection looks like and make a Pass/Fail judgment of the network connection. The markers enables distance and loss measurements.

OTDR view modes
Trace view
Traditional view with OTDR waveforms and event markers.

Map view

Simple, icon-based map view for easy interpretation of network events.

Long battery operation time

Over 10 hours!

No worrying about running out of battery power during your daily work. The AQ1000’s high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.

Quick boot-up

Under 10 seconds!

From completely OFF to measurement ready in under 10 seconds!

Built-in PC and LS, and VLS

Power checker (PC)

Measures and displays optical power of incominglight for testing network performance.

Light source (LS)

Outputs a stable, continuouswave/modulated light for measuring end-to-end attenuationaccurately when paired with an optical power sensor.

Visible light source (VLS)

Outputs red light for checking continuity of launch fibers or short fiber trunks. Breaks and bending in fiber can be identified visually. (/VLS option is required.)

Details

OTDR

Items	Specifications
Wavelength (nm)*4	1310 ±20/1550 ±20
Applicable fiber	SM (ITU-T G.652)
Distance range (km)	0.2, 0.5, 1, 2, 5, 10, 20, 30, 50, 100, 200, 256
Pulse width (ns)	3, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000, 5000, 10000, 20000
Sampling resolution	min. 5 cm
Number of sample points	max. 256000
Distance measurement accuracy (m)	±(1 m + Measurement distance × 2 × 10−5 ±1 sampling resolution)
Event dead zone (m)*1	≤ 0.8
Attenuation dead zone (m)2, 4	4/5
Dynamic range (dB)3, 4	32/30
Loss measurement accuracy	±0.03 dB/dB
Reflection accuracy	±2 dB
Laser class	Class 1M or 1

General specifications

Items		Specifications
Display*		5.0 inch color TFT LCD WVGA (Capacitive touchscreen) Resolution: 800 × 480 pixel
External interfaces		USB2.0 × 2 (Type A × 1: Host, Type micro B × 1: USB mass storage devices, DC power supply)
External interfaces		Wireless LAN (/WLN option): IEEE802.11b/g/n
Dimensions		185 mm (W) × 116 mm (H) × 56 mm (D) (excluding projections)
Weight		Approx. 660 g
Environmental conditions	Temperature	Operating: –10°C to 50°C, (10 to 35°C during charging, excluding a USB power adapter) (0 to 50°C when WLAN using) Storage: –20°C to 60°C
	Humidity	5 to 90%RH (No condensation)
	Altitude	4000 m or less
Power requirements		DC 5 V±10%, max. 1.5 A
Battery	Type	Lithium ion polymer
	Operating time	10 hours or more (Telcordia GR-196-CORE Issue 2, September 2010)
	Recharge time	5 hours (typical)

Power checker function

Items	Specifications
Wavelength setting (nm)	1310/1490/1550/1625/1650
Measurement range (dBm)	–50 to -5
Measurement accuracy (dB)*	±0.5

Stabilized light source function

Items	Specifications
Wavelength (nm)	1310 ±25/1550 ±25
Optical output level	–3 dBm ±1 dB
Output power stability (dB) *	±0.05
Modulation mode	CW, 270 Hz, 1 kHz, 2 kHz
Laser class	Class 1M or 1

Visible light source function (/VLS option)

Items	Specifications
Wavelength (nm)	650 ±20
Optical output level	–3 dBm or more (Peak)
Modulation mode	CW, 2 Hz
Laser class	Class 3R
