Home Fusion Splicer & Accessories >> Sumitomo >> Sumitomo Type-25eM Fusion Splicer
Fusion Splicer & Accessories

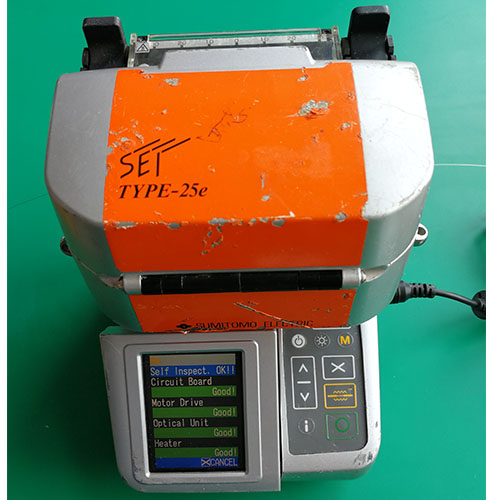

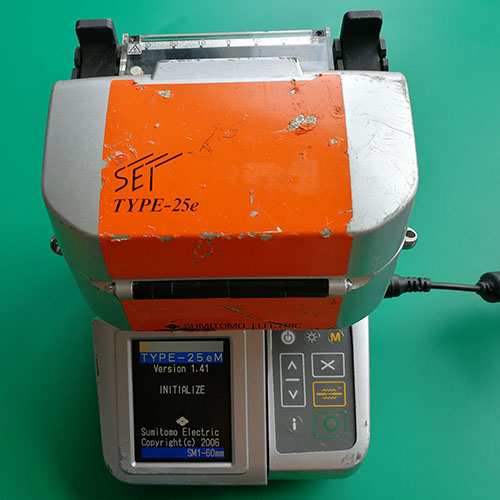

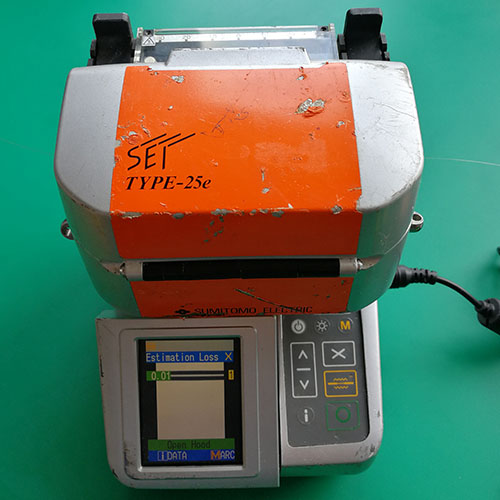

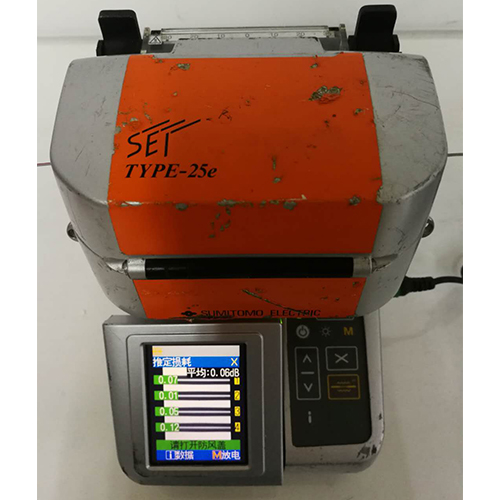

Sumitomo Type-25eM Fusion Splicer
Manufacturer:
  Sumitomo
Model:
  Type-25eM
Condition:
  Used
Availability:
  1 pc
Price:
  $1,750.00
Qty:
Description:
Mainbody, AC Adapter, FHM-4 fiber holder.

   Feature

Include: Type-25eM, FHS-025, AC Adapter.

The new Type-25e TomCats incorporate all the features, functions, and proven reliability of the Type-25 family -- the industry's most popular handheld splicers for FTTx premise, and restoration applications -- but with numberous enhancements.

The new TomCats feature improved optical technology utilizing your choice of an economical one camera system or an industry standard dual camera splice loss estimation system. The improved optical technology, combined with a quicker splice protection sleeve heater, allows the unit to deliver a typical splice time in less than 11 seconds for SMF or MMF.

The units are also compatible with sumitomo's new Lynx -- CustomFit Splice-on Connector, which makes index matching gel, hand polishing, epoxies and splice trays obsolete. The Type-25e family features an improved fiber holder system to increase splice repeatability while making the units effortless to learn and operate

Key Features:
•Dual Camera Splice Loss Estimation
•60 Splice & Heat Shrinks per Battery Charge
•Multiple Language Options Including Spanish
•User-Friendly Menu Selection System
•Unified Holders for Type-25e/Type-66
•Unified Electrodes for Type-25e/Type-66/Type-39
•Built-in Battery Charger
•AC Adapter Incorporated within Unit
•Lynx -- CustomFit Splice-On Connector Compatible
•Automatic Arc Test Function
•Perfect for use with Splice-On Connectors



   Details
Model
Type-25eU
Type-25eS
Type-25eM
ROHS
Compliant (engineered to be more environmentally friendly)
Alignment Method
Fixed V-Groove
Applicable Fiber Types
SM, MM, DSF, NZ-DSF
Fiber Count
1ct.
1ct.
Up to 4ct. Ribbon
Fiber Placement
Fiber Holder System
Unified Fiber Holders for Type-25e/Type-66/
Type-65/Type-39/Type-Q101
Cladding Diameter
125µ
Typical Splice Loss
Identical Fibers
SMF/ MMF
0.10 / 0.04dB
0.05 / 0.03dB
0.05 / 0.03dB
Typical Heaters Cycle
40 Seconds
Typical Splice Time
11 Seconds
Battery Operation
60 Splice & Heat Shrink Cycles per Charge
Arc Test
Automatically Compensates for
Environmental Conditions
External Interface
12 Volt DC Output for Accessories
USB Port for Quick PC Transfers
Internal Splice Data Storage
1500
Lynx2 CustomFit® Splice-On Connector
Compatible
Powering Options
Internal Battery Charger
Internal AC Adapter
