--Stripper--Fujikura HJS-02 Thermal Jacket Stripper

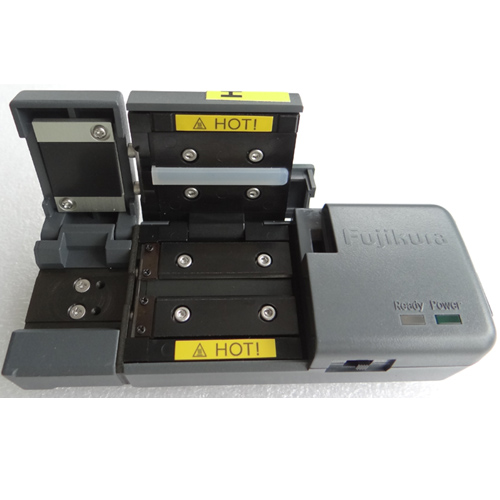

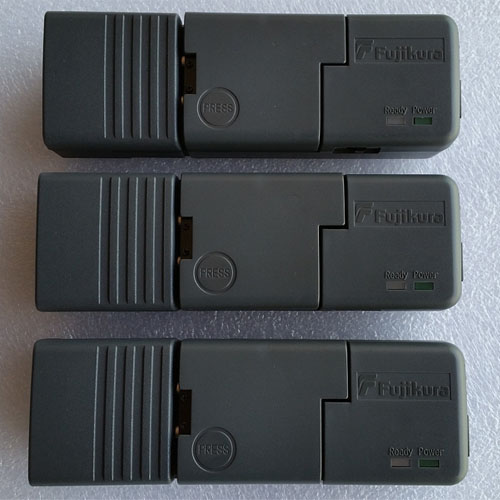

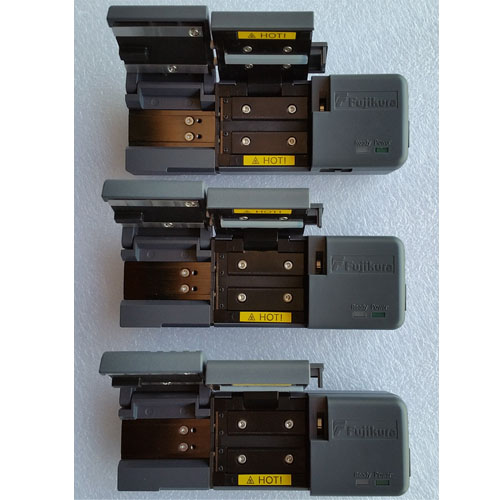

Fujikura HJS-02 Thermal Jacket Stripper

Manufacturer:

HJS-02

Model:

Fujikura

Condition:

New

Availability:

Price:

$.00

Description:

Feature

The HJS-02 is designed for stripping of fiber ribbon with up to 12 fibers all together. In order to achieve this, the HJS-02 is equipped with a heater, which soften the coating of the fiber ribbon for smooth stripping.

SPECIFICATIONS：

Applicable Fiber Count	1 to 12 Fiber Ribbon
Ribbon Thickness	250 μm to 400 μm
Coating / Cladding diameter	250 / 125 um
Stripping Length	35 mm maximum
Typical Heating Time	3 second Normal Mode 8 second Power Save Mode
Standard Heating Temperature	100℃
Dimensions (W x D x H)	107 mm x 40 mm x 29 mm
Weight	195 g
Power Supply	12V DC
Fiber Holder	FH-50, FH-60,FH-70,FH-40,FH-100 series

Details

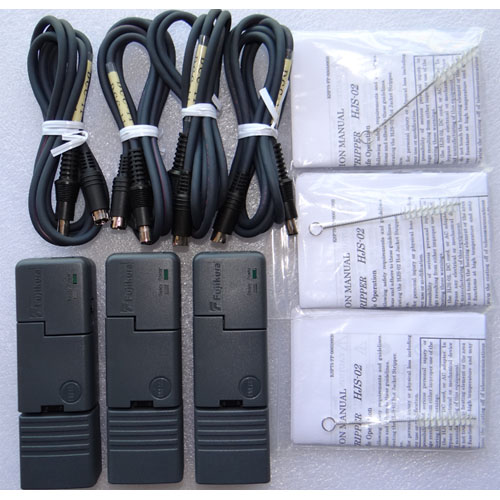

STANDARD PACKAGE

Description

Model

Q’ty

Stripper main body

HJS-02

1 pc

DC power cord for FSM-17R/18R/19R/50R/
60R/70R/88R/90R

DCC-11

1 pc

Cleaning brush

BRS-01

1 pc

Hexagonal wrench

1 pc

Instruction manual

1 pc
