--OTDR--Agilent/HP 8147A SM OTDR (E4310A + E4316A)

Agilent/HP 8147A SM OTDR (E4310A + E4316A)

Manufacturer:

Agilent/HP

Model:

8147A

Condition:

Used

Availability:

Yes

Price:

$1,500.00

Qty:

Description:

HP 8147A OTDR ,E4310A mainframe + E4316A module, 1310/1550nm,35/34dB

Feature

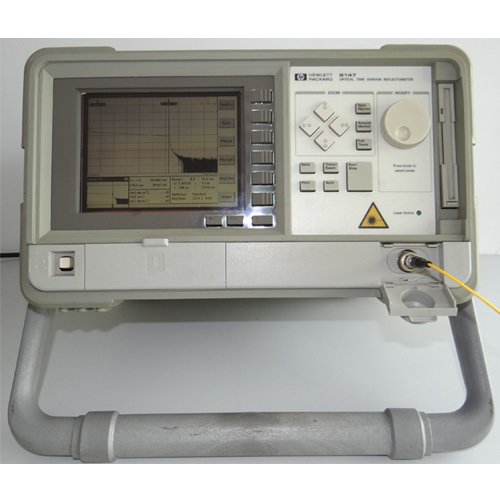

Agilent/HP 8147 Optical Time Domain Reflectometer

The Agilent E4310A(8147) OTDR is a high-performance optical time domain reflectometer for installation, maintenance and bench applications. Whether you are more concerned with fiber characterization or fault location, the Agilent E4310A(8147) is designed for fast and accurate measurement and analysis of a fiber link, all at the touch of a single-button.

Features:
● Simple one button operation
● Pre-programmable procedures
● Full on-line analysis and remote operation
● High-resolution and long-range in one unit
● Small and lightweight
● Exceptionally flexible

Details

Module	E4313A	E4316A	E4319A	E4324A
Laser Type	FP-Laser InGaAsP
Central wavelength	1310/1550±15 nm
Fiber type	Single-mode
Pulsewidth	30 ns,100 ns,1us,10us		100 ns,1 us,10us,20us
Dynamic range (dB)	30/30	35/34	40/39	45/43
Event deadzone	4m/4m	4m/4m	4m/4m	4.5m
Attenuation deadzone	10m/12m	10m/12m	10m/12m	14m
