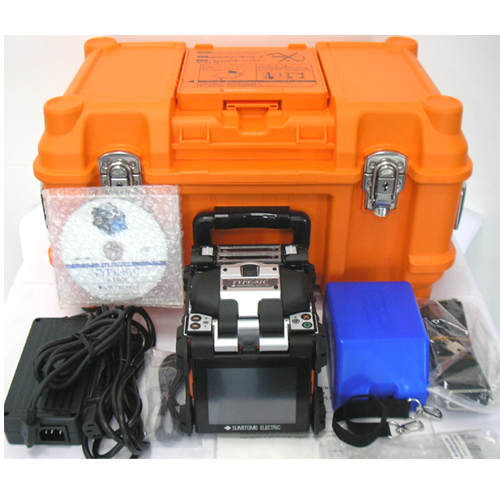

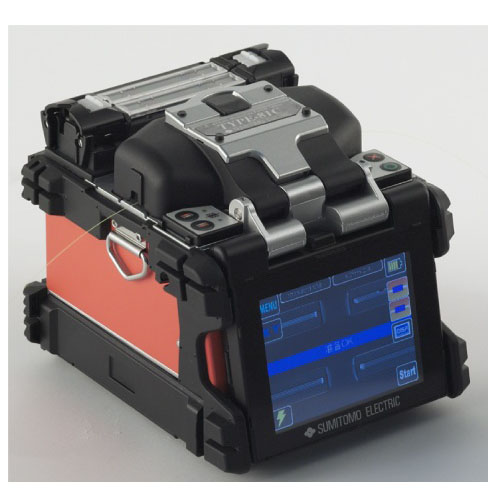

Material |
Silica glass |
|
Profile types |
SMF (ITU-T G.652), MMF (ITU-TG.651), DSF (ITU-T G.653),NZDSF
(ITU-T G.655), BIF(ITU-T G.657), EDF |
|
Fiber diameter |
Cladding diameter:80μm ~150μm, Coating diameter:100μm ~1,000μm |
|
Applicable fiber or cable size |
up to ø1,000μm |
Drop cable(2.0* x 3.1mm) Indoor
cable (2.0 x 2.0mm) |
|
Cleave length |
5~16mm |
10mm |
|
Splice loss(typical) |
SMF: 0.02dB, MMF: 0.01dB,DSF: 0.04dB, NZDSF: 0.04dB |
|
Splicing cycle time(typical) |
7sec. (Quick mode), 7.5sec.(SMF standard mode), 8sec.(Auto mode) |
|
Heating cycle time (typical) |
28sec. |
|
Splice & Heat cycles |
Approx.200 |
|
Fiber view & magnification |
Two CMOS cameras observation, 320X (zoom:700X) for X or Y
single axis view, 88X for both X & Y dual axis view |
|
Splicing programs |
Max.300 |
|
Heating programs |
Max.100 |
|
Functions |
Loss estimation
Splice image capture: 64 images
Splice data storage: 10,000 splice data
Proof test: 1.96N (200gf)
Attenuation splicing: 0.1dB to 15dB in 0.1dB increments
Universal clamps for 250μm, 900μm tight & loose buffer fiber
Reversible coating clamps
Dual automatic independent heaters
User-selectable heater clamp operation
Onboard user training video
Provided Automatic arc calibration
Arc test Provided
Display of remaining Splice & Heat cycles (Battery mode)
Remote interactive maintenance |
|
Size |
Size 120(W) X 154(D) X 130(H)mm(without anti-shock rubber) |
|
Weight |
1.8kg (without battery), 2.1kg (with battery) |
|
Monitor |
4.1" touch screen color LCD |
|
Terminals |
DC output :DC12V (for JR-6)
USB port :USB 2.0 (mini-Btype)
Storage media: SD/SDHC memory card |
|
Power supply |
AC input: 100~240V, 50/60Hz (ADC-1430)
DC input:10~15V
Battery module: Li-ion 11.1V, 4,600mAh (BU-11) |
|
Operating condition |
Altitude:0~6,000m, Temperature: -10~+50 °C, Humidity:
0~95% (non-condensing), Wind velocity up to 15m/s |
|
Storage condition |
Temperature: -40~+80°C, Humidity: 0~95% (non-condensing),
Battery: -20~+30°C (long term) |
|
Languages |
11 |
|
Electrode life |
3,000 arc discharges |
