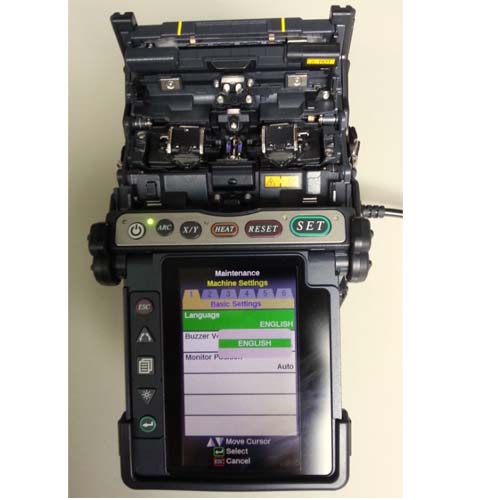

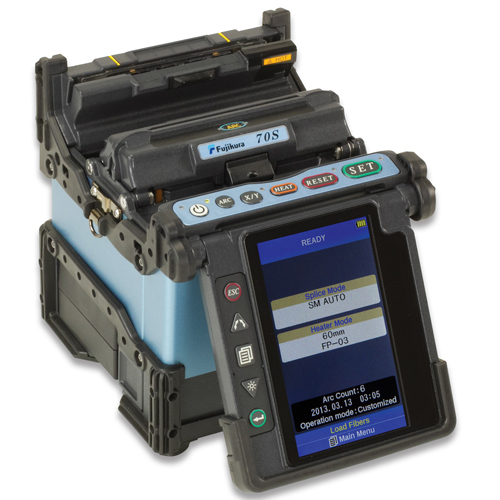

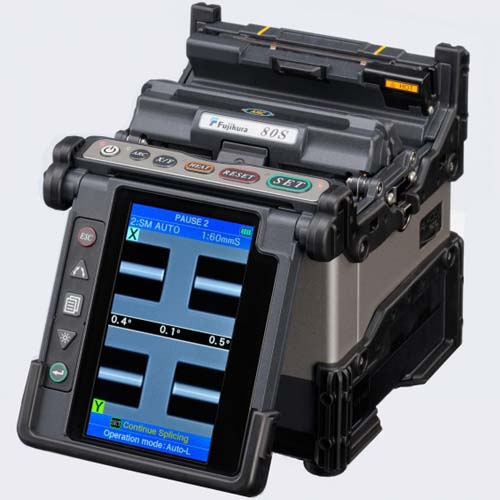

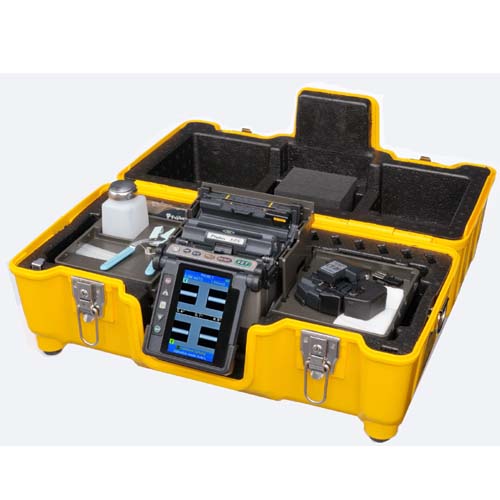

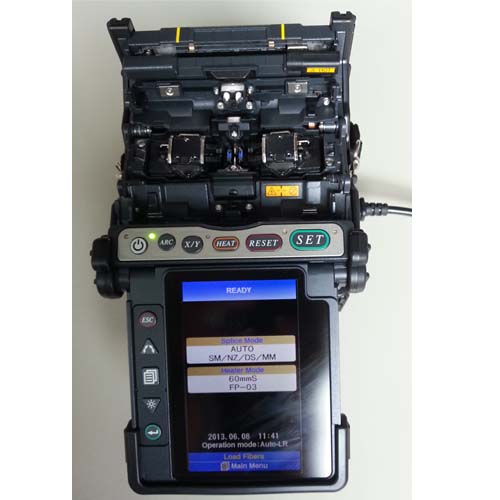

Applicable fibres |
SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653),
NZDS (ITU-T G.655),Others |
|
Fibre Count |
Single |
|
Cladding diameter |
80 to 150μm |
|
Coating diameter |
100 to 1000μm |
|
Fibre cleaved length |
5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900 |
|
Actual average splice loss |
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS. |
|
Splice time |
7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode |
|
Return loss |
60dB or greater |
|
Splicing modes |
100 splicer modes are available |
|
Splice loss estimate |
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate. |
|
Attenuation splice function |
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an
inline fixed attenuator |
|
Storage of splice result |
The last 2000 results to be stored in the internal memory. |
|
Magnification |
X / Y (300X magnification), or both X and Y simultaneously (160X magnification) |
|
Viewing method |
By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor |
|
Tension test |
1.96 to 2.25N |
|
Operating condition |
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively. |
|
Tube heater |
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference |
|
Tube heat time |
13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available |
|
Applicable protection
sleeve length |
60mm, 40mm and a series of micro sleeves. |
|
No. of splice/heating
with battery |
200 times of splicing and heat shrinking under with BTR-09 |
|
Power supply |
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09 |
|
Terminals |
USB2.0 ( Mini-B) for data and video signal transfer to PC. |
|
Wind protection |
Up to 15m/s wind velocity |
|
Dimensions |
146(W) x 159(D) x 150(H) mm
Including wind protector, monitor, and rubber protector
Excluding rubber foot |
|
Weight |
2.5 kg, with ADC-18 AC adaptor
2.7 kg, with BTR-09 battery |
|
Electrode life |
3000 arc-discharges |
