--Handheld Power Meter--OMM-3300 Handheld Optical Multimeter

OMM-3300 Handheld Optical Multimeter

Manufacturer:

Sincroncom

Model:

OMM-3300

Condition:

Brand New

Availability:

20 pcs

Price:

$250.00

Qty:

Description:

Feature

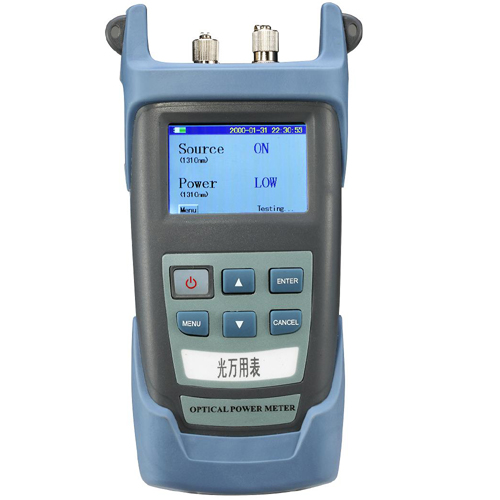

OMM-3300 Handheld Optical Multimeter
integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit which can perform closed-loop tests by incorporating both modules. Individual regimes of operation can also be manually chosen using menu operation to switch functions. A perfect combination to make your optical fiber tests a lot more convenient.

Features
● Includes all the outstanding functions of handheld intelligent power meter(OPM-300)
● Includes all the outstanding functions of handheld stable light source(OLS-300)
● Switching of the power meter function and that of the light source by menu operation
● Different light sources and power meters can be built into OMM-3300

Applications
● Maintenance in Telecom
● Maintenance CATV
● Test Lab of optical fibers
● Other Fiber Optic Measurements

Details

Model	OMM-3300
A	B	C
Power Meter + Laser Source (VFL)	Light Source + Power Meter	Light Source + Power Meter + Laser Source (VFL)
Power Meter
Measuring Range(dBm)	-70~+10/-50~+26
Detector type	InGaAs
Uncertainty (dB)	+0.2(5%)
Calibration wavelength (nm)	850,980,1300,1310,1490,1550
Display precision (dB)	0.01
Light Source
Output wavelength (nm)	1310/1550(other optionl)
Measuring Range(dBm)	-30dBm--23dBm
Accuracy	+10 nW(5%)
SM Output Power(dBm)	>= -2dBm
MM Output Power(dBm)	>= -20dBm
Laser Source (VFL)
Wavelength (nm)	650
Output Power (mw)	1,5,10,20,30(optionl)
General Specification
Communication	RS232
Operating Temperature (^oC)	-10~+60
Storage Temperature (^oC)	-25~+70
Battery Operating Time	>15h
Display	2.4TFT LCD
Dimension (mm)	19010048
Power Supply	Li battery (9V)
Weight (g)	280
