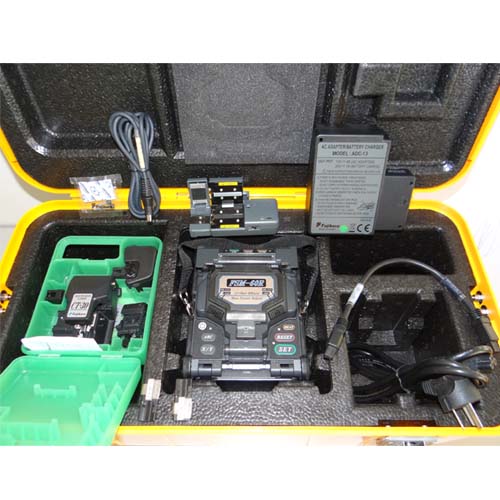

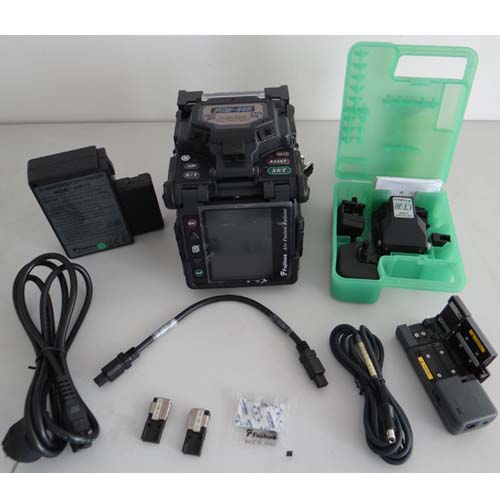

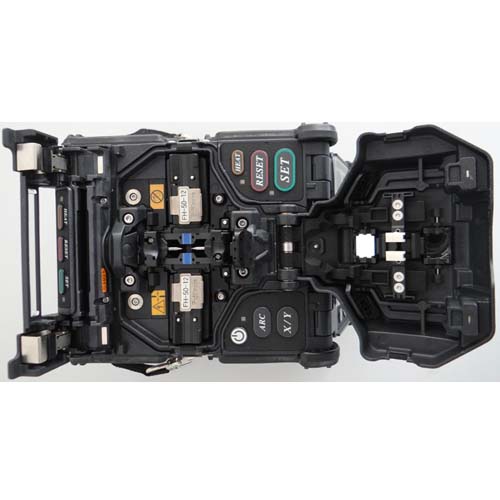

Applicable type of fibres
|
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
|
|

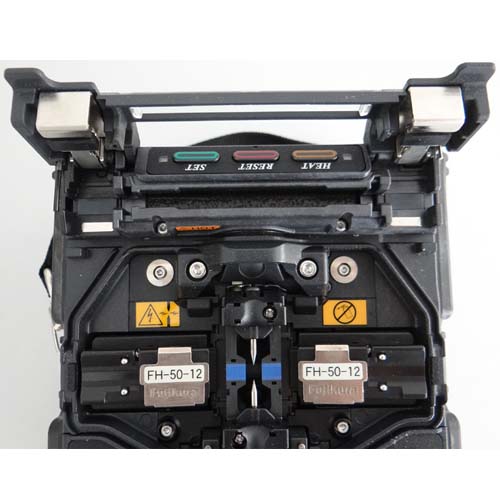

Fibre Count
|
Single,2,4,6,8,10 and 12
|
|
Applicable fibres dimensions
|
Ribbon: Cladding diameter 125um,Ribbon fiber thickness 0.25 to 0.4mm
Single: Cladding diameter 125um,Cladding diameter 250um to 900um
|
|
Fibre cleaved length
|
10mm
|
|
Splicing modes
|
Total 100 modes
|
|
Typical splice loss
|
0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS.
Measured by cut-back method relevant to ITU-T standards.
|
|
Return loss
|
＞＞60dB
|
|
Splice time
|
Typical 20sec. with standard SM (ITU-T G.652)
|
|

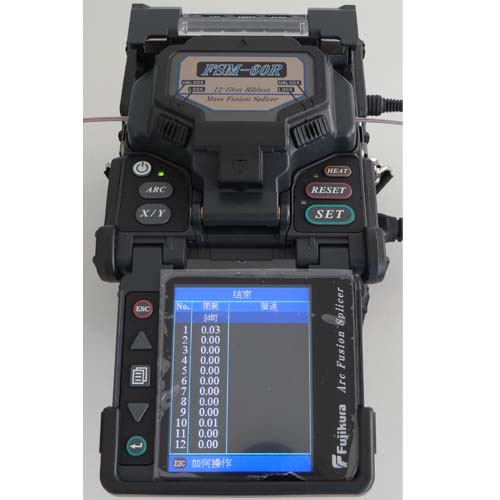

Splice loss estimate
|
Available
|
|
Tube heater/heating time
|
Built-in tube heater with 30 heating modes. Typical 40sec with FP-04T and 50sec
with FP-05
|
|
Applicable protection
sleeve length
|
60mm, 40mm and a series of micro sleeves.
|
|
Storage of splice result
|
The last 2000 results to be stored in the internal memory.
|
|
Tension test
|
1.96 to 2.25N
|
|
Operating condition
|
0 to 3660m above sea level, 0 to 95% RH and -10 to 50°C degC and up to 15m/s wind velocity, respectively
|
|
Storage condition
|
0 to 95% RH and -40 to 80°C degC respectively.
Battery: -20 to 30 degC for long term
|
|
Dimensions
|
136(W) x 161(D) x 143(H) mm excluding rubber foot.
|
|
Weight
|
2.1kg, with ADC-13 AC Adaptor, 2.5kg, with BTR-08 Battery
|
|
Viewing method and display
|
Two CMOS cameras and 4.1inches TFT colour LCD monitor
|
|

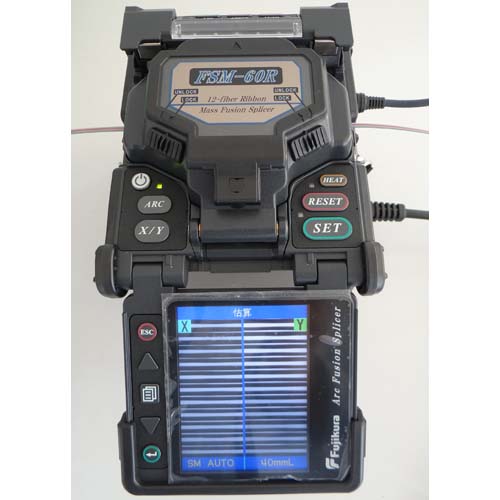

Fibre displayview and magnification
|
X/Y (35X magnification), or both X and Y simultaneously (35X magnification).
Changeable 35X to 90X
|
|
No. of splice cycles
with battery
|
Typical 90 cycles (splice / tube heat) with BTR-08.
|
|
Power supply
|
Applicable voltage from 100 to 240V AC or 10 to 15V DC. with ADC-13. 13.2V DC
with BTR-08
|
|
Electrode life
|
1000 arc-discharges
|
|
Terminals
|
USB1.1 ( Mini-B type) connector for PC communication.
6-pin Mini-DIN connector for HJS-02,HJS-03 or SH-8C power supply
|
