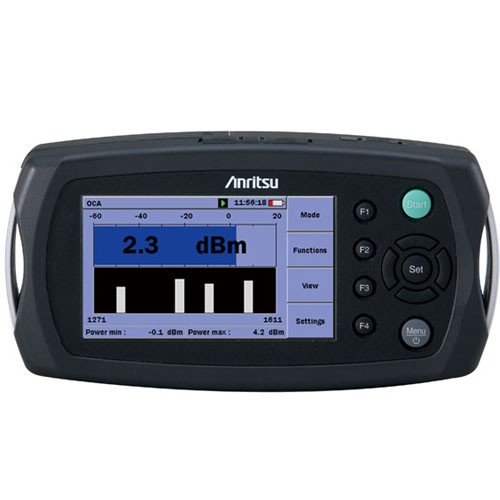

MT9090A Network Master Series
MU909014A/A1/B/B1/C/C6
MU909015A6/B/B1/C/C6
¦ÌOTDR ModuleTM
1310 nm/1550 nm for Installation,
1625 nm & 1650 nm for Maintenance,
1310 nm/1550 nm plus 1625 nm or 1650 nm
Field Optical Testing Redefined!
MT9090A with MU909014x/15x Overview
There are many handheld OTDRs on the market that appear to be a good value until they are put into action and the user quickly finds out that they lack the performance needed to install and maintain today¡¯s networks.
The new MU909014x/15x ¦ÌOTDR Module series for the MT9090A Network Master platform from Anritsu finally addresses this need by providing all of the features and performance required for installation and maintenance of optical fibers in a compact, modular test set. The MT9090A represents an unmatched level of value and ease of use, while not compromising performance. Data sampling of 2
centimeters, dead zones of 0.8-meter and dynamic range up to 38 dB ensure accurate and complete fiber evaluation of any network type ¨C premise to access, metro to core¡including PON-based FTTx networks featuring up to a 1 ¡Á 64 split.
The MT9090A with MU909014x/15x module represents a new era in optical fiber testing!
Key Features£º
• Tri-wavelength OTDR for both installation and maintenance
(1310 nm/1550 nm plus filtered 1650 nm or 1625 nm)
• Built-in PON Power Meter, Loss Test Set and Light Source functions
• High-end OTDR performance in a pocket-size package with unique battery
operation
• Full AUTO mode simplies operation, no OTDR knowledge needed
• Complete PON testing through splitters up to 1 ¡Á 64
A Truly Revolutionary OTDR!
Introducing the first handheld OTDR that does not compromise performance ¨C the new ¦ÌOTDR from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Network Master MT9090A ¦ÌOTDR has created a new class of test instruments. It features 2 cm resolution for accurate mapping of events, dead zones of 0.8-meter (2.6-feet) and a dynamic
range of up to 38 dB ¨C enough to test over 150 km (90+ miles). The MT9090A ¦ÌOTDR also takes portability to a new level by being the first handheld OTDR that truly fits in the palm of your hand.
Complete Testing Tool - Premise to Core
With a dynamic range of up to 38 dB, the ¦ÌOTDR evolves far beyond the premise/access applications that other handheld OTDRs service. Metro links can be tested with lower pulsewidths which provides greater detail and better resolution while long haul fibers up to 175 km (108 miles) can also be completely evaluated.
FTTx and PON Ready
With splitter-based fiber-to-the-x (FTTx) deployments becoming more popular, the need for test equipment to thoroughly test and maintain them has risen. The ¦ÌOTDR series features the ability to test up to a 1 ¡Á 64 split completely from end-to-end and with high resolution.
Full Auto Operation
To ensure easy operation and accurate results for all levels of users,the MT9090A ¦ÌOTDR can be configured to automatically select all test parameters. The user simply presses the ¡°Start¡± button and within a few seconds has a complete, easy to read summary of the fiber under test.
0.8-m Dead Zone for Short Fiber Analysis
With 0.8-meter dead zones, the MT9090A is perfect for evaluating central office, FTTx and intra building cables.
Fast Real Time Sweeping
The MT9090A ¦ÌOTDR features real-time updates as quickly as 0.25 seconds. This is useful for connector and splice optimizations as well as verifications of parameter selection.
Portable
The MT9090A ¦ÌOTDR takes portability to a whole new level. With dimensions of just 19 cm ¡Á 9.6 cm ¡Á 4.8 cm (7.5¡± ¡Á 3.8¡± ¡Á 1.9¡±) and a weight of only 700 g (1.54 lbs.), the ¦ÌOTDR is the smallest and lightest OTDR on the market. With its lightweight design and user friendly dimensions, the MT9090A is perfect for the outside plant environment and can easily be managed with one hand. The standard soft case with shoulder strap further increases portability when traveling from the truck to the testing site.
Rugged
With no fans or vents to allow dust and moisture to enter the unit, the MT9090A was designed for the challenging outside plant environment.
Modular Design
The MT9090A features a modular design allowing modules to be easily changed in the field. Users can interchange different OTDR modules or perform other optical network testing such as optical channel analysis with the available CWDM channel analyzer module or 10/100/1000 MB Ethernet testing on optical or electrical links.
Operation is quite similar between modules so the user is immediately familiar with operation.
4.3-inch Wide Screen Display for Easy Viewing
The high resolution, full color, 4.3-inch wide screen display is the perfect format for viewing OTDR results. It also provides excellent readability both indoors and outdoors.
Integrated Launch Fiber
To further simplify testing, the MU909014x/15x series is the only handheld OTDR that features an integrated launch cable. A ten meter (30 feet) fiber is built-in so initial fiber connections can be verified without the need for additional patchcords or launch fibers.
