Manual Linear Stages >> Newport HR-1 Long-Travel High-Resolution Micrometer Head

Manual Linear Stages

Newport HR-1 Long-Travel High-Resolution Micrometer Head

Manufacturer:

Newport

Model:

HR-1

Condition:

Used

Availability:

Yes

Price:

$160.00

Qty:

Description:

Feature

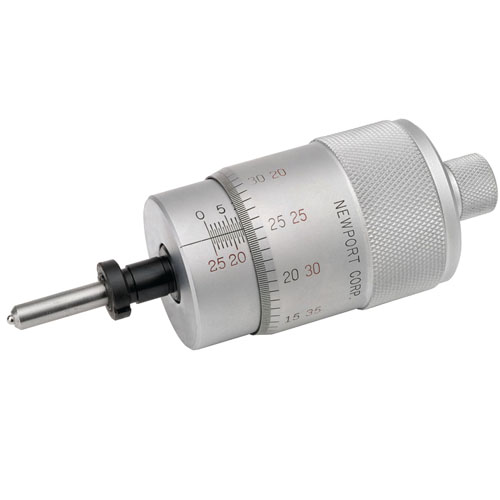

The HR-1 Long-Travel High-Resolution Micrometer Head has a sensitivity that is 4X better than most standard micrometer heads. Its engraved scale reads directly in units of 2 µm, and its large knob allows exceptionally sensitive position adjustment. This micrometer is compatible with all axes of any 462 stage configuration except for side-driven configurations.

Model	HR-1
Actuator Type	Micrometer
Travel	1.00 in. (25.4 mm)
Load Capacity	11 lb (49 N)
Graduations	2 µm
Minimum Incremental Motion	0.25 µm
Sensitivity	0.1 µm
Travel, Fine	25.4 mm

Details
