----EXFO FVA-600 Variable Attenuator

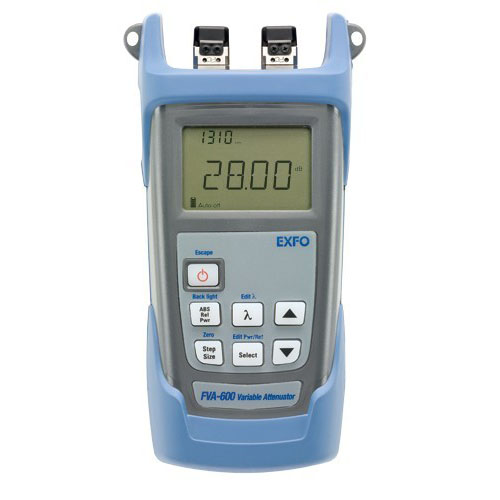

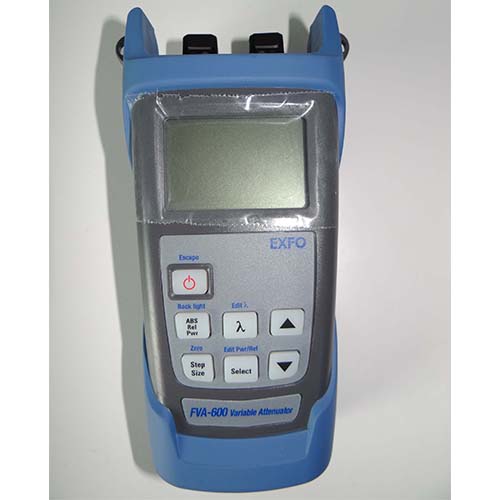

EXFO FVA-600 Variable Attenuator

Manufacturer:

EXFO

Model:

FVA-600

Condition:

New

Availability:

5 pcs

Price:

$2,350.00

Qty:

Description:

Delivers the highest performance within handheld optical attenuators on the market.

Feature

KEY FEATURES:

• Most compact and rugged portable attenuator on the market
• Low cost of ownership:three-year warranty and recommended calibration interval

• Three operating modes: Absolute, Relative and Power

• Backlit display, optimized for dim environments

• USB-based remote control capability, for easy test routine integration

• Rechargeable Li-ion battery

APPLICATIONS:

• Handles high power up to 24 dBm, suiting any application,including CATV and telco

• BER testing-ready: high optical resolution of 0.01 dB

• FTTx-ready: standard 1310, 1490, 1550 and 1625 nm wavelengths

Details

SPECIFICATIONS

Fiber type (μm)

9/125

Calibration wavelengths (nm)

1310/1550

Wavelength range (nm)

1250 to 1625

Wavelength increment (nm)

1

Maximum attenuation (dB)

65

IL (dB)

≤1.5

Resolution (dB)

0.01

Linearity (dB)

±0.1

Repeatability 2σ (dB)

±0.1

Optical return loss (dB)

>50

Max. input power (dBm)

24

Battery life (hours)

>300

Warranty and recommended calibration interval (years)

3

GENERAL SPECIFICATIONS

Size (H x W x D)

190 mm x 100 mm x 62 mm

Weight

0.6 kg (1.3 lb)

Operating Temperature

—10 °C to 50 °C(14 °F to 122 °F)

Storage Temperature

—40 °C to 70 °C (–40 °F to 158 °F)

Relative humidity

0 % to 95 % non-condensing

Power

AC adapter and rechargeable Li-ion battery

Standard Accessories:
User guide, Certificate of Calibration, quick reference sticker in five languages,AC adapter/charger, connector adapter (EUI-XX), lithium ion battery, shoulder strap,carrying bag, USB cable, instruction manual on CD
