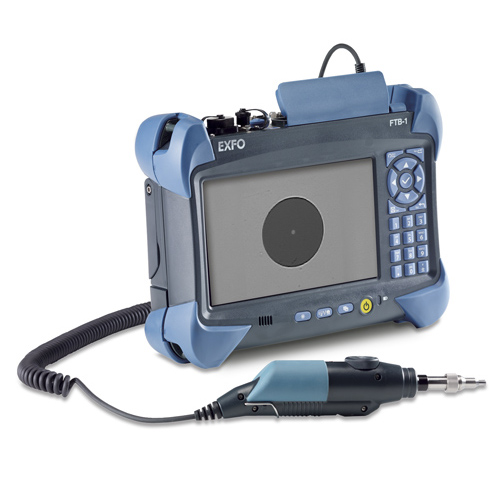

The FTB-1 Platform is a modular platform optimized for fast, powerful, dedicated FTTH and Ethernet test applications.FEATURES¡ñ USB, mobile, Wi-Fi and Bluetooth connectivity capabilities¡ñ Supports third-party applications and all the tools that enable technicians to complete their work right in the field¡ñ Lets you take advantage of the EXFO Connect environment to manage fi eld testing/reporting operations as well as your platform pool¡ñ Intel ATOM processor with Windows Embedded Standard operating system, for optimized productivity and versatility¡ñ Latest battery technology for unmatched operation autonomy¡ñ One GigE port and two USB 2.0 ports¡ñ Windows Remote Assistance and Remote Control¡ñ EXFO fiber inspection probe connector interface¡ñ Display: TFT outdoor-enhanced LCD, 7-inch touchscreen ¡ñ Telcordia-compliantFTB-1 APPLICATIONS AND MODULES¡ñ FTTH testingModule: FTB-730 PON FTTx/MDU OTDRWith a dynamic range of up to 39 dB and enabling power meter and visual fault locator functionalities, the FTB-730 PON FTTx/MDU OTDR module allows fiber installers to seamlessly characterize splitters in PON FTTx and multiple dwelling unit (MDU) applications.¡ñ Ethernet testing up to 10GModule: FTB-860 NetBlazer Ethernet TesterOffering comprehensive, yet simple test suites, the FTB-860 NetBlazer Ethermet Tester enables field technicians to quickly and easily turn up, validate and troubleshoot Ethernet services, with full EtherSAM capabilities, from 10 Mbit/s to 10 Gbit/s.
SOFTWARE TEST TOOLSThis series of platform-based software testing tools enhance the value of the FTB-1 Platform, providing additional testing capabilities without the need for additional modules or units.¡ñ VoIP TEST TOOLSEXpert VoIP generates a voice-over-IP call directly from the test platform to validate performance during service turn-up and troubleshooting. • Supports a wide range of signaling protocols, including SIP, SCCP, H.248/Megaco and H.323 • Supports MOS and R-factor quality metrics • Simplifies testing with configurable pass/fail thresholds and RTP metrics¡ñ IP TEST TOOLSEXpert IP integrates six commonly used datacom test tools into one platform-based application to ensure that field technicians are prepared for a wide range of testing needs. • Rapidly performs debugging sequences with VLAN scan and LAN discovery • Validates end-to-end ping and traceroute • Verifies FTP performance and HTTP availability

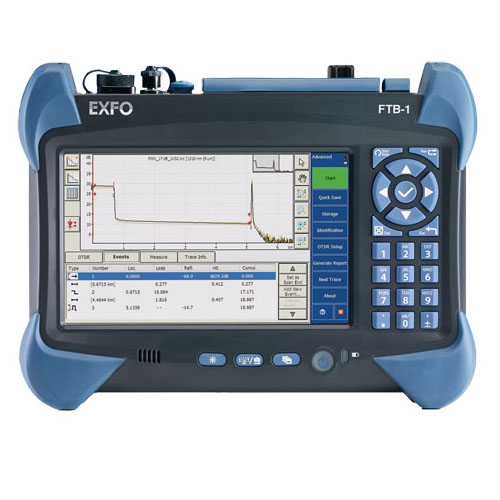

FTB-1 OTDR Module Technical Specifications Model FTB-720 FTB-730 Wavelength (nm) 850/1300/1310/1550/1625 1310/1490/1550/1625 Dynamic range at 20 us (dB) 26/25/35/32/33 39/35/37/39 Event dead zone (m) 0.8 Attenuation dead zone (m) 3.5/4.5/5/5/5 4/4.5/4.5/4.5 Distance range (km) MM:0.1/0.3/0.5/1.3/2.5/5/10/20/40SM: 1.25, 2.5, 5, 10, 20, 40, 80, 160, 260 1.25, 2.5, 5, 10, 20, 40, 80, 160, 260, 400 Pulse width (ns) 5, 10, 30, 50, 100, 275, 500, 1000, 2500, 10 000, 20 000 Linearity (dB/dB) ¡À 0.03 PON dead zone (m) - 35 Loss threshold (dB) 0.01 Loss resolution (dB) 0.001 Sampling resolution (m) MM,0.04 to 2.5, SM: 0.04 to 5 Sampling points Up to 256 000 Distance uncertainty (m) ¡À (0.75 + 0.0025 % x distance + sampling resolution) Measurement time User-defined (60 min. maximum) Typical real-time refresh (Hz) 3 4 Stable source output power (dBm) ¨C2.5 Visual fault locator (optional) n/a Reflectance (dB) ¡À 2 GENERAL SPECIFICATIONS Module FTB-720 FTB-730 Size (H x W x D) 130 mm x 36 mm x 252 mm Weight 0.65 kg
