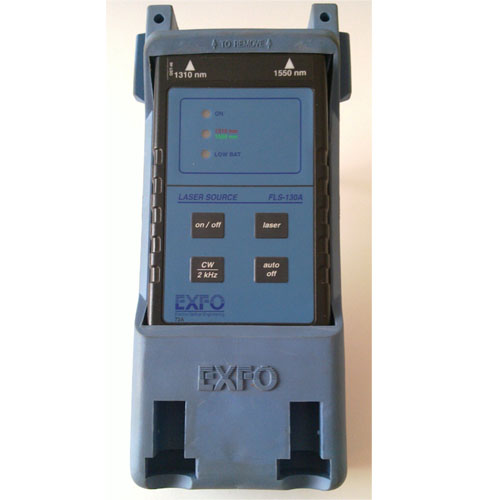

The FOS-120A Light Source and FLS-130A Laser Source deliver excellent stability. They are compatible with the FOT-10A and FOT-20A Power Meters, which are suitable for a variety of testing applications including continuity and end-to-end testing.
Versatility
The FOS-120A Light Source and FLS-130A Laser Source feature single- and dual-wavelength sources from single or double ports.
The units deliver continuous wave (CW) signals for power/loss measurements and 2-kHz signal generation for fiber identification.
Certain FOS-120A models and all FLS-130A models are equipped with EXFO's Universal Interface.
Unit Powering
Powering options include a 9 V battery and a standard AC adapter.
The battery life offers a minimum of seven hours of continuous operation.
An auto-off function with a 10-minute timer is included to preserve battery life.

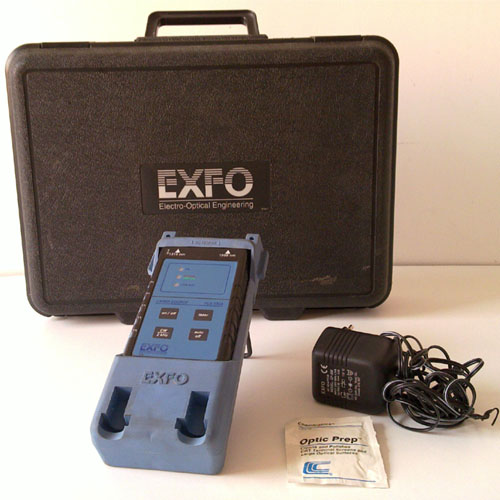

Accessories
Each unit comes complete with a rigid carrying case, a shockproof PVC
holster with strap, as well as SC, ST and FC connectors.
Key Features
● Single- or dual-wavelength configuration
● 2-kHz signal generation for fiber identification
● Dual powering: 9 V battery and AC adapter/charger
● Auto-off function
● Rigid carrying case and shockproof holster with strap
● Equipped with EXFO’s Universal Interface, except for certain FOS-120A models
