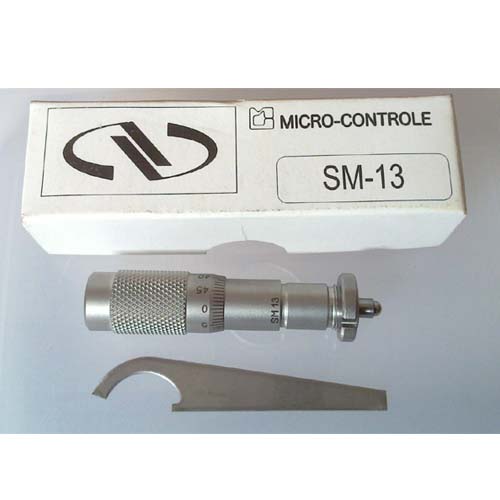

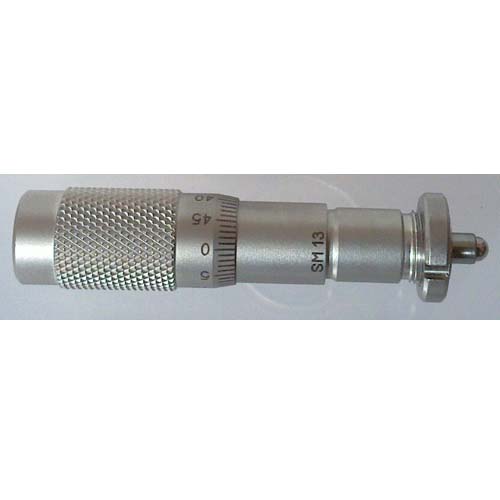

Newport SM-13 Vernier Micrometers

Manufacturer:

Newport

Model:

SM-13

Condition:

New

Availability:

4 pcs

Price:

$100.00

Qty:

Description:

Feature

The SM-13 Series vernier Micrometers, which are standard drives for most Newport stages, are ourmost popular manual actuators and are available in travel ranges from 6 to 50 mm. These micrometers have 0.5 mm pitch (50.8 TPI) threads and read directly in increments of 10 μm, with vernier reading of 1 μm. A left handed version is also available. Left-hand threaded versions are preferred when the micrometer is mounted on the moving platform of a stage so that turning the micrometer moves the stage in the direction of the micrometer travel. The SM-13 is compatible with 461/462 , 561/562, 423/433, 426/436, 460P, 460A, 401/406, RS and GON Series Stages as well as many modular optical mounts.

• Exceptionally smooth movement
• Vernier scale allows positioning to 1 μm increments
• Compatible with most Newport translation stages and mounts
• Available in travel ranges from 6 to 50 mm

Details

Specifications:

Thread Pitch (mm)	0.5
Graduations (μm)	10
Vernier Graduations* (μm)	1
Sensitivity (μm)	1

※ SM-06 does not have a vernier scale.

Dimensions [in. (mm)]

Model	A	B Min	B Max	C Min	C Max	D	E
SM-13 SM-13LH	2.36 (59.9)	1.18 (30)	1.69 (43)	0.05 (1.3)	0.56 (14.2)	0.157 (4.0)	0.51 (12.9)
SM-25	3.83 (97.3)	1.98 (50.2)	2.96 (75.2)	0.26 (6.6)	1.23 (31.2)	0.276 (7.0)	0.625 (15.9)
SM-50	5.70 (144.8)	2.95 (74.9)	4.92 (125)	0.157 (4.0)	2.13 (54.1)	0.276 (7.0)	0.625 (15.9)
