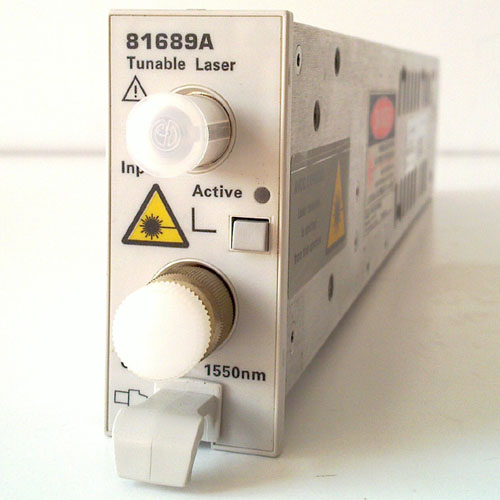

The Agilent 81689A compact tunable laser is specially designed for the C- Band. It allows you to add more flexibility to your test system for DWDM passive component test.
● Specially designed for the C-Band
● Saturating optical amplifiers for dense-WDM transmission systems
● Configuring multi-channel test beds for DWDM transmission systems
● Continuous sweep through full wavelength range
● Output equipped with either standard single-mode fiber or Panda type
polarization maintaining fiber
Key Specifications:
● Wavelength Range: 1525nm to 1570nm
● Output Power: >/= 6dBm
● Power Stability： ±0.03dB over 1 hour at constant temp
●Wavelength Range：1525nm to 1570nm
● Absolute wavelength accuracy：±0.3nm
● Relative wavelength accuracy：±0.03nm
● Wavelength Repeatability：±0.05 nm
● Wavelength Stability： ±0.02nm
● Tuning Speed：＜ 10 s/ 50nm
● Output power： ≥6 dBm (1525~1575nm)
● Minimum output power：-3 dBm；
● Power Stability: ±0.03 dB, over 1 hour
