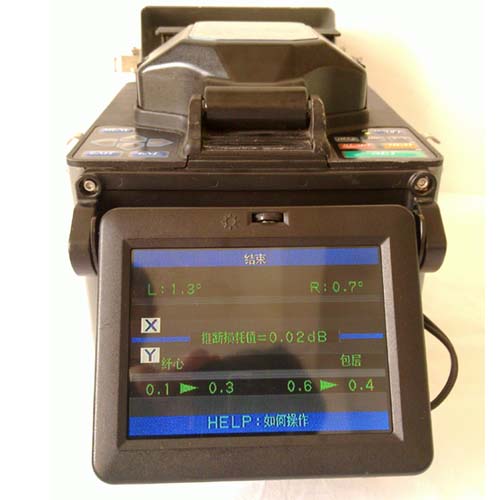

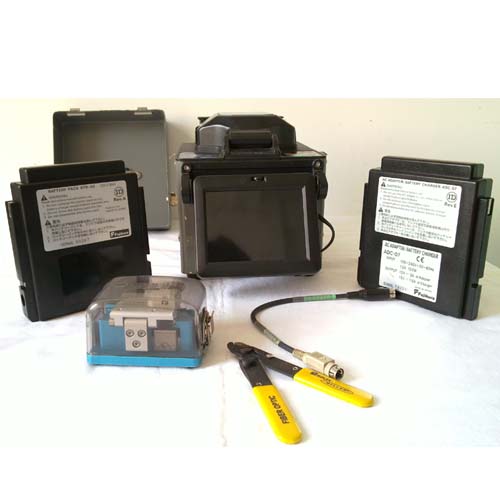

Fujikura FSM-40S Fusion Splicer

Manufacturer:

Fujikura

Model:

FSM-40S

Condition:

Used

Availability:

Yes

Price:

$1,600.00

Qty:

Description:

Feature

Fujikura offers FSM-40S & FSM-40S-B to provide ideal solutions for all the splicing applications in Telecom and DWDM industry.
Both splicers are equipped with a lot of new functions such as, NZDSF (ITU-T G.655) splicing capability, dissimilar fiber splicing capability, accurate splice loss estimate function and the quickest splicing performance in the most compact and lightest body in the industry. The two types have many components in common but locations of monitor, Tube-heater, wind protector opening direction and panel keyboard are different. Now you can choose one depending on your splicing applications and preference.

Features:
● Core-to-core fiber alignment system
● Quick "15sec" splicing and Full automatic operation
● NZDSF (ITU-T G.655) splicing capability
● Dissimilar fiber splicing capability
● Compact and light-weight and various power supply options
● 2 CCD camera, No up-down mirror
● High resolution 5 inch color LCD monitor
● Automatic Arc Calibration function for stable arc discharge
● Automatic fiber type identifier and self diagnostic test function
● PC Communication function with RS232C (Splice results, splicing parameters, etc.)
●Two different types to choose from Front monitor or top monitor

Details

Applicable fibers	SM(Singlemode), MM(Multimode) and DS(Dispersion shifted) fibers, NZ-DS (Non-zero dispersion shifted), CS(Cut-off shifted) and ED(Er doped) fibers are also applicable with special mode.
No. of fibers to be spliced	Single to single fiber.
Fiber cleaved length	8 to 16mm with 250um outer coating diameter. 16mm(standard) or 8 to 16mm (option) with outer coating diameter of more than 250um up to 1000um (1.0mm).
Actual average splice loss	0.02dB with SMF, 0.01dB with MMF and 0.04dB with DSF to ITU-T Recommendations G.652, G.651 and G.653 respectively, when measured by the cut-back method to relevant ITU-T and IEC standards.
Splicing time	Typical 15 sec.
Return loss	>>60dB.
Splicing modes	40 user programmable modes and up to 60 modes for reference (factory predetermined setting).
Splice loss estimate	Core deformation and MFD mismatch as well as core axial offset can be taken into account for more accurate estimate.
Attenuation splice function	intentional high splice loss of 0.1dB to 15dB (0.1dB step) can be made for an in-line fixed attenuator.
Storage of splice result	The last 2000 results to be stored in the internal memory.
Fiber display	X/Y, or both X and Y simultaneously.
Magnification of fiber	264X or 132X.
Viewing method	CCD camera and 5" TFT color LCD monitor.
Altitude, Humidity and Temperature compensation	0 to 3,500m above sea level, 0 to 95%RH and - 10 to 50oC, respectively.
Mechanical proof test	2N (standard) / 4.4N (option)
Tube heater	Built-in tube heater with 30 heating modes.
Applicable protection sleeve length	60mm, 40mm and a series of micro sleeves.
No. of splices with battery	Approx. 40 times (including heatings) per full charge with BTR-05.
Power supply	Auto voltage selection from 100 to 240Va.c. with ADC-07, 10.5 to 14Vd.c. with DCA-01 and 12Vd.c. with BTR-05.
Wind protection	Max. wind velocity of 15m/s.
Dimensions	172W x 186D x 180H (mm)
Weight	FSM-40S：4.4kg (4.9kg including AC adaptor ADC-07)
