--光纤夹具 --Fujikura FH-100-900光纤夹具

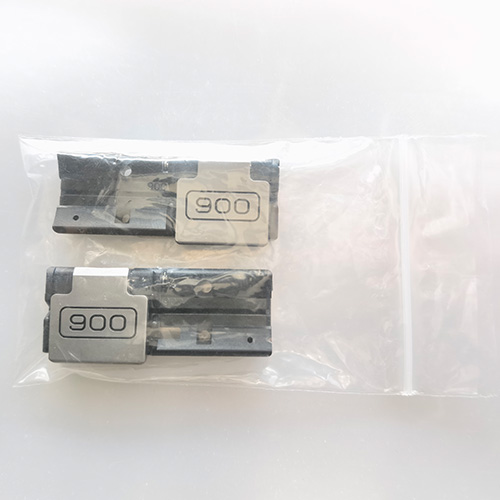

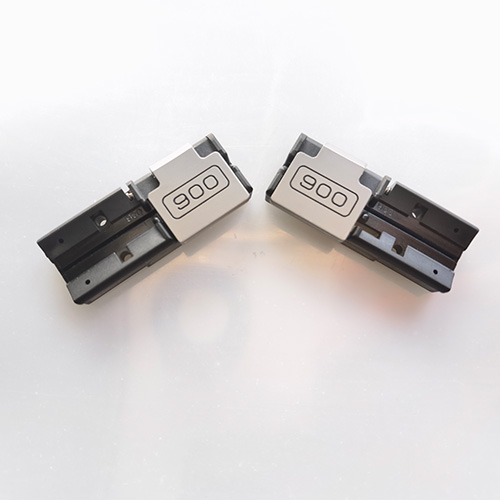

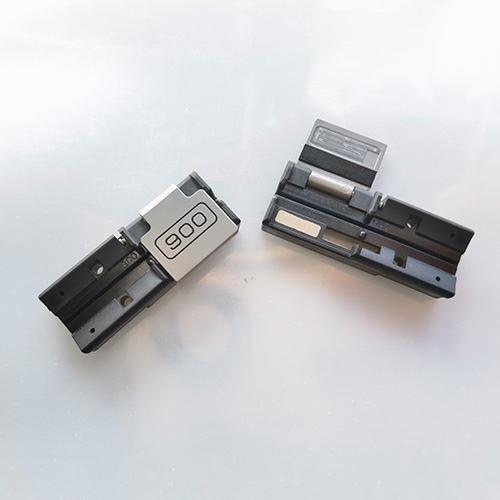

Fujikura FH-100-900光纤夹具

Ʒ��:

Fujikura

�ͺ�:

FH-100-900

��:

��ڱ��޵��ϸ��Ϣ��ϵ��

�۸�:

��4,500.00

��:

��:

��

Fiber holder FH-100 series are for Fujikura Fusion Splicer FSM-100 series and FSM-45F/PM series. The FH-100 series has various models depending on coating diameter from 55mm to 1000mm, and custom one from over 1000mm may be available.

Specification
Applicable coating diameter		55μm to 1000μm
Type variation		In accordance with coating diameter See VARIATION table on the right
Fiber holding		Magnetic clamping
Fiber Holder placing onto splicer		Guide-pin system with two pins per one side of Fiber Holder
Dimensions		42L x 16W x 7H (mm)
Weigth		20g for 1 pair
Material		Base plate: Heat-hardening plastic Lid: Iron-Nickel alloy
Use for	Fusion Splicers	FSM-40F,FSM-40PM,FSM-45F,FSM-45PM,FSM-45LDF,FSM-45PM-LDF,FSM-100M,FSM-100P,FSM-100M+,FSM-100P+
	Fiber Cleavers	CT-32 for 125mm cladding fibers CT-38 for 80mm cladding fibers CT-100 for 80 to 250mm cladding fibers
	Jacket Strippers	HJS-02 for 250μm to 400μm fiber JS-02-900 for 900μm fiber HTS-12 94μm to 1000μm fiber

��ϸ��

VARIATION
ITEM	Model	Coating dia. (mm)
FH-100-XXX FH-100-XXX-EV	FH-100-060	55 to 71
	FH-100-100	94 to 117
	FH-100-125	118 to 139
	FH-100-150	140 to 169
	FH-100-180	170 to 199
	FH-100-210	200 to 239
	FH-100-250	240 to 289
	FH-100-300	290 to 339
	FH-100-350	340 to 389
	FH-100-400	390 to 489
	FH-100-500	490 to 589
	FH-100-600	590 to 689
	FH-100-700	690 to 789
	FH-100-800	790 to 889
	FH-100-900	890 to 1000
	FH-100-***	1000 to (max)2000 Contact with us.
-EV是对应端面观察系统的光纤夹具
