--光纤切割刀--Photon Kinetics FK11-4 超声波光纤切割刀

Photon Kinetics FK11-4 超声波光纤切割刀

Ʒ��:

Photon Kinetics

�ͺ�:

FK11-4

��:

��ڱ��޵��ϸ��Ϣ��ϵ��

�۸�:

��.00

��:

��:

��

The cleavers in the world provide better, faster or easier results!

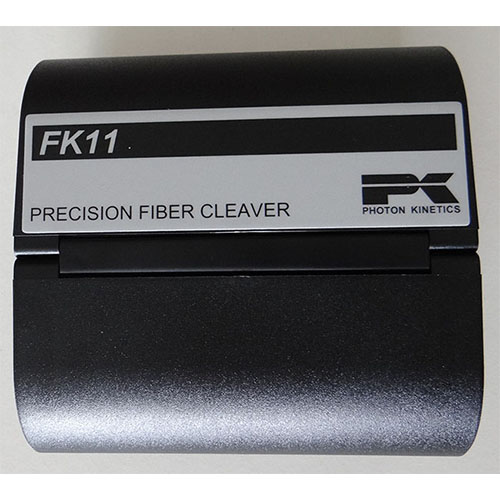

The FK11 Precision Fiber Cleaver produces flat, clean, low end-angle cleaves every time. That means low loss, high strength fusion splices, optimum performance of packaged devices and consistent results in measurement applications.
The FK11 will also minimize the time required to make splices and maximize the output of test systems which rely on high quality cleaves.

The FK12 Angled Fiber Cleaver set the standard for low reflectance fiber termination of better than -60 dB. Fast and repeatable cleaving of fiber ends at user-selectable cleave angles (0º to 15º) make it possible for installers to reduce the reflectance of mechanical splices and other fiber terminations without the use of index matching gels. The FK12 is the tool of choice where quick fiber termination and low return loss are required at minimum cost.

Features and Benefits:
• Tension First — eliminates the need for polishing and index matching gels
• Versatile — cleaves a wide range of fiber types and sizes
•Low reflectance terminations — enables optimal performance of fiber optic components and systems
• Clean — no contamination of the fiber during cleaving
• Easy-to-use — fast terminations reduce installation or pigtailing costs

��ϸ��

Precise fiber cleaving is easy

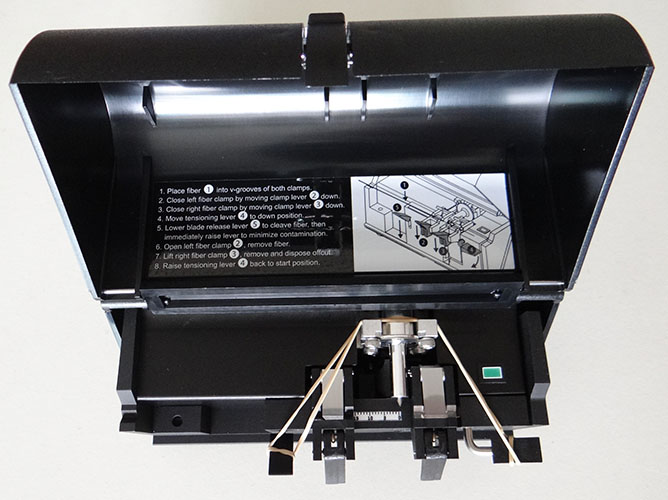

The fiber is secured in the clamps and put under controlled tension. If using the FK12 the torsion required to achieve the desired cleave angle is set. Tension is then applied and the ultrasonic vibrating diamond blade is moved toward the fiber. The result, depending on the cleaver used, is a clean, flat or angled fiber that is ready for splicing or testing.

Specifications

Model	FK11 Series	FK12
Fibers cleaved	80 μm to 200 μm	125 μm
Maximum fiber buffer	900 μm maximum	250 μm diameter
Minimum cleave length	6 mm (.23 inches) apx.	6 mm (.23 inches)
Cleave angle settings	N/A	0º to 15º
Cleave angle repeatability	<0.6º typical (95% of cleaves)	<1º typical (2 repeatability at 8º setting)
Blade	Diamond, estimated life >20,000 cleaves

General Specifications

Case	ABS, non-slip feet, 6.25 mm (.24 inch) BSW thread tripod mount
Battery	9V alkaline (MN1604), estimated battery life >10,000 cleaves
Weight	1.1 kg (2.4 lbs)
Dimensions (H x W x D)	75 x 153 x 150 mm (3.0 x 6.0 x 5.9 inches)
Operating temperature	0º to 45º C (32º to 113º F)
Storage temperature	-20º to 60º C (-4º to 140º F)
