Description |

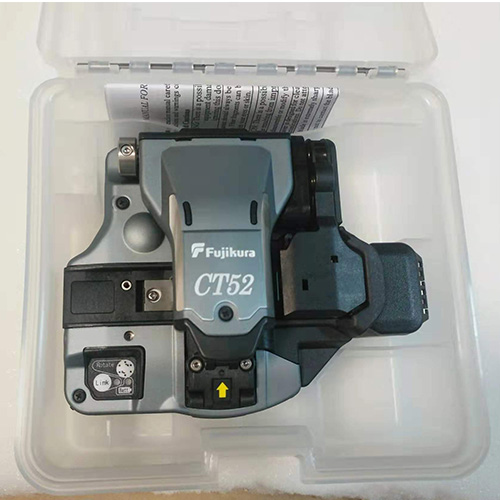

CT52 |

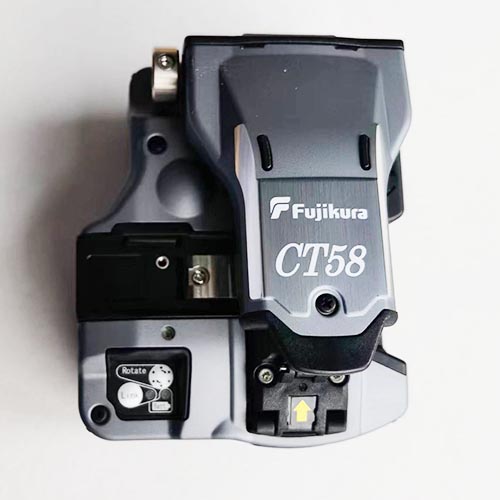

CT58 |
|
Applicable optical fiber |
Silica optical fiber |
|
Flber counl |
Single |
|
CIadding diameter |
125 μm |
80μm |
|
Coating diameter |
150 to 900um |
100 to 400um |
|
CIeaving
Length |
Fiber holder |
Refer “CLEAVER SELECTION” below |
|
AD-50 |
5 to 20mm (coating dia.≦ 250um)
10 to 20mm (coating dia. >250um) |
|
AD-10-M24 |
5 to 20mm (coating dia. 250μm)
10 to 20mm (coating dia. 250μm) |
|
CIeaving.angle |
Typical 0.5 degrees |
|
BIade life |
60000 fibers (1250 fibers x3 heights x 16 positions) |
|
Fiber scrap collection |
Inslalled |
--- |
|
Wireless connectivity |
Wireless technical standard :Bluetooth 4.1LE
OS:Andoroid 5.0 or above.IOS 8.0 or above (IPhone6 above) |
|
Power supply |
AAA (LR03) dry battery: 2pcs |
|
Dimensions |
120(W)x95(D)x58(H)mm |
90(W)x95(D)x58(H)mm |
|
Weight |
300g |
265g |
|
Operation condition |
0 to 95% RH and 0 to 40℃ (non-dew) |
|
Storage condition |
0 to 95% RH and -40 to 80℃ (non-dew) |
|
Resistance features |
Shock:76cm (30 inch) all directions drop |
|
Dust: Exposure to dust
(0.1 to 500um dia.Alumina Silicate) |
|
Rain:IPX2
(3mm/Min, 2.5 miln on each of 4 surfaces tilted at 15°) |
