--UV光导管--EXFO 2 x 3mm x 1500mm 光纤光导管

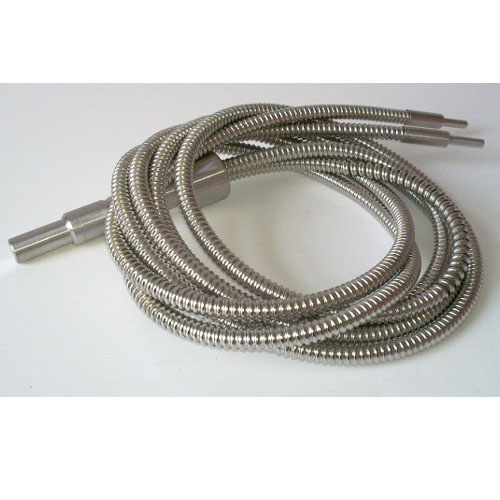

EXFO 2 x 3mm x 1500mm 光纤光导管

Ʒ��:

EXFO

�ͺ�:

2 x 3mm x 1500mm

��:

��ڱ��޵��ϸ��Ϣ��ϵ��

�۸�:

��4,500.00

��:

��:

二手

��

THE OMNICURE® ADVANTAGE IN SPOT CURING
The High Power Fiber Light Guides are ideal for use when multiple outputs are required withuniform intensity to each output. Our High Power Fiber Light Guides provide 50% greater throughput than standard Quartz Fiber Light Guides and are virtually free of optical degradation.High Power Fiber Light Guides provide 25% more output than bifurcated liquid light guides and do not require balancing.

Longer Lamp Life Guaranteed
High Power Fiber Light Guides provide 25% to 50% more throughput, to give you more energy from your lamp. The more energy your lamp starts with, the longer you can use your system before the lamp needs replacing. Longer lamp life means fewer
replacement lamps which lowers your cost of operating the system.

Higher Yields
When using multi-legged light guides it is necessary to have equal energy to each leg for even curing. High Power Fiber Light
Guides have less than 5% difference between legs. Even curing means higher yields for your process which lowers your costs.

Less Operator Intervention
Multi-legged liquid light guides require balancing to achieve even distribution of power between legs. High Power Fiber Light
Guides provide even distribution with no balancing required so your operators spend more time making parts.

Never Needs Replacing
Liquid Light Guides need replacing about every two years. High Power Fiber Light Guides have been tested to over 60,000 hours of exposure of unfiltered light with no degradation. Therefore; you will never need to replace your light guides again.

Specifications:

DESCRIPTION
Throughput	Over 80% of the source
Divergence	Numerical Aperture 0.37
Uniformity	+/- 5%
Wavelength	Transmits 160-1200nm
Minimum Bend Radius	5cm
Optical Degradation	Over 95% transmission after over 60,000 hours tested from unfiltered light source
