--光纤剥线钳热剥钳--日本藤仓Fujikura HJS-02光纤热剥钳

日本藤仓Fujikura HJS-02光纤热剥钳

Ʒ��:

Fujikura

�ͺ�:

HJS-02

��:

��ڱ��޵��ϸ��Ϣ��ϵ��

�۸�:

��.00

��:

��

The HJS-02 is designed for stripping of fiber ribbon with up to 12 fibers all together. In order to achieve this, the HJS-02 is equipped with a heater, which soften the coating of the fiber ribbon for smooth stripping.

SPECIFICATIONS
Applicable fiber	Silica optical fiber
Fiber count	1 to 12
Coating material	UV cured resin
Cladding diameter	125μm
Thickness of the fiber ribbon	200 to 400 μm
Stripping length	Up to 35mm
Typical heating time	Approx. 3 sec. at normal mode, Approx. 8 sec. at power saving mode
Fiber holder	by FH-60-250, FH-50 series Fiber Holder, except FH-60-900, FH-50-250 and FH-50-900
Dimensions	107W x 40D x 29H mm
Weight	195g
Power supply	12 V DC from Fujikura splicer with DC power cord 85 to 265 V AC with optional AC adapter.

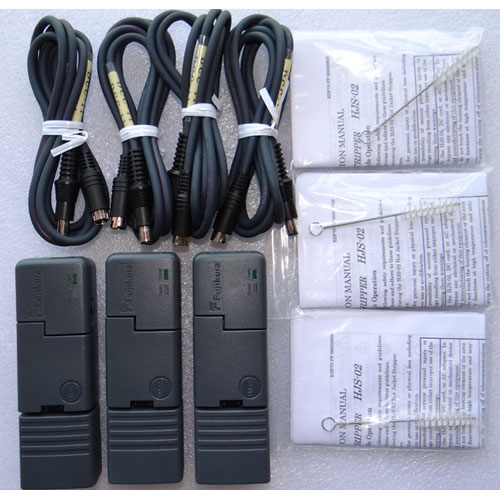

STANDARD PACKAGE
Description	Model	Q’ty
Stripper main body	HJS-02	1 pc
DC power cord	DCC-11	1 pc
Cleaning brush	BRS-01	1 pc
Hexagonal wrench	-.	1 pc
Instruction manual	-.	1 pc

OPTIONAL ITEMS
Description	Model
AC adaptor	ADC-09
AC power cord	ACC-08 ~ -12
Spare Blade	HJS2M-2020
